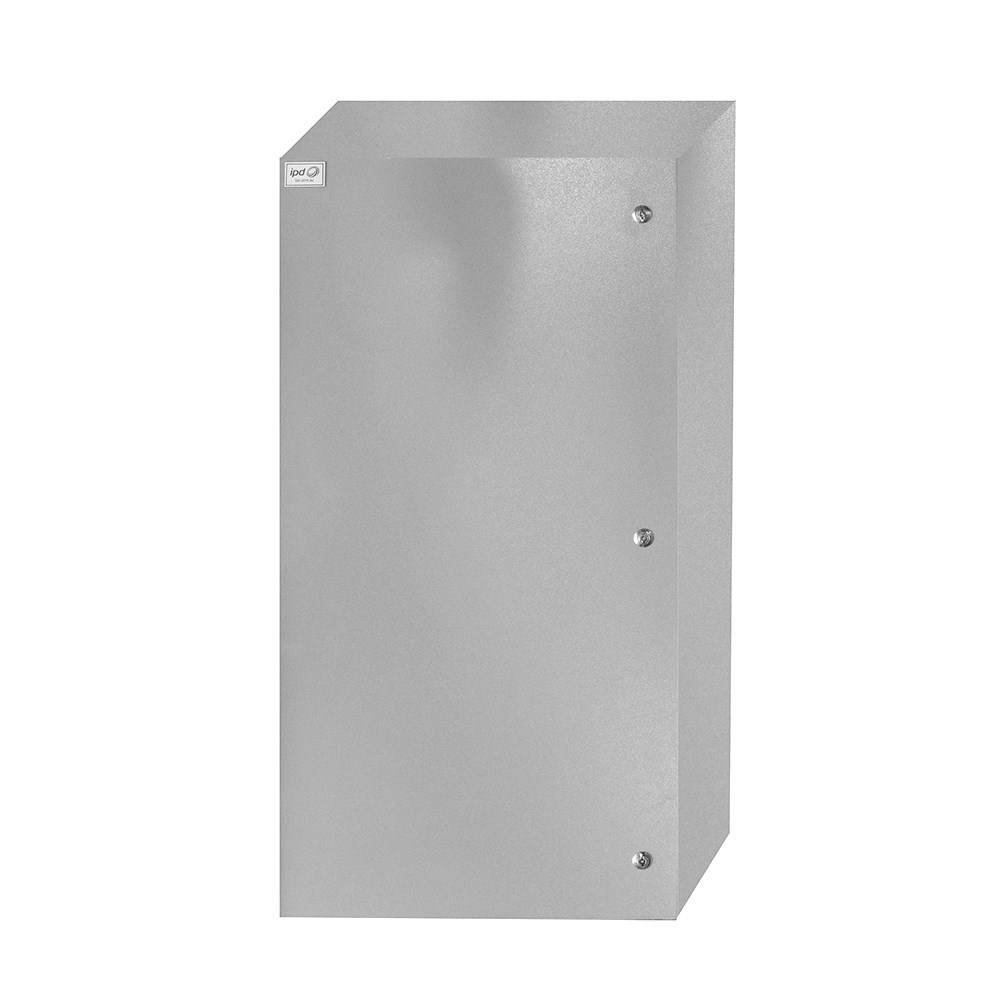

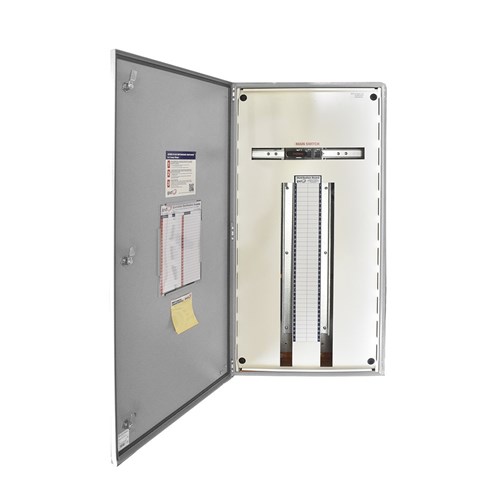

IPD E43L72T250 Distribution Board 72-P IP43 RAL 7035 Grey Mild Steel LBS 250A 1200mm H x 600mm W x 200mm D

Product Code: E43L72T250

  • Supports up to 250 A current
  • Features 72 poles for versatility
  • LBS main switch type included
  • IP43 protection rating ensures durability
  • Compact dimensions: 600x1200x200 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Distribution Board
Brand IPD
Colour RAL 7035 Light Grey
Degree of Protection IP43
Depth 200 mm
DIN Accessory Spaces 15
Height 1200 mm
Main Switch Type LBS
Material Mild Steel
Number of Locks 3
Number of Poles 72
Rated Current 250 A
Width 600 mm

Description

<p>When it comes to selecting reliable electrical components for industrial and commercial applications, the Standard - E43 is a dependable choice. This product is designed with practicality and durability in mind, catering to those who value performance and robustness.</p><p>The Standard - E43 is built to handle a rated current of 250 A, making it suitable for a range of demanding environments where consistent power distribution is crucial. With 72 poles, this product provides ample capacity for complex installations that require multiple connection points.</p><p>Central to its design is the LBS (Load Break Switch) main switch type. The LBS offers reliable switching capabilities, ensuring safe operation during maintenance or in the event of an emergency. This feature underscores the importance placed on safety and reliability in its construction.</p><p>Protection against environmental factors is another key aspect of this product. With an IP43 degree of protection, the Standard - E43 safeguards internal components from solid objects over 1 mm in size and water spray at angles up to 60 degrees from vertical. This level of protection makes it well-suited for indoor installation where occasional exposure to dust or moisture may occur.</p><p>In terms of dimensions, this unit measures 600 mm in width, 1200 mm in height, and has a depth of 200 mm. These proportions are thoughtfully designed to provide substantial capacity while maintaining a compact footprint that can be integrated into various settings without occupying excessive space.</p><p>Constructed from mild steel, the Standard - E43 combines strength with flexibility—qualities essential for enduring industrial conditions while allowing ease of installation and modification as needed. Its RAL 7035 light grey finish not only enhances its aesthetic appeal but also contributes to corrosion resistance, ensuring longevity even when subjected to challenging environments.</p><p>Overall, the Standard - E43 stands out as a robust solution tailored for professionals seeking reliable electrical infrastructure components that deliver on both functionality and durability.</p>
