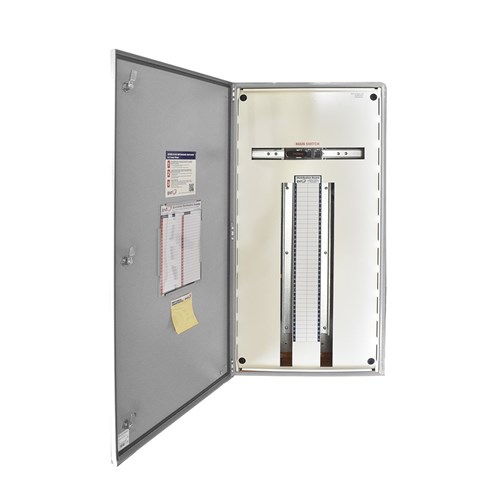

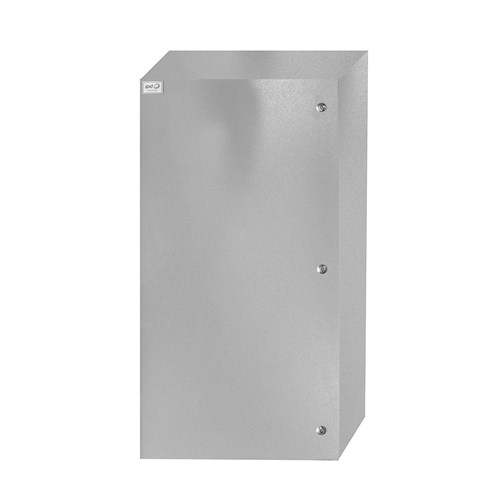

IPD E65L12T250 DB 12P IP65 GREY + OT250 LBS

Product Code: E65L12T250

  • IP65 protection for dust and water resistance
  • Grey RAL7035 mild steel construction
  • Compact 600H x 600W x 200D mm size
  • Accommodates up to 12 poles
  • Rated for a current of 250A
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Standard - E65
Brand IPD
Colour Grey, RAL7035
Degree of Protection IP65
Depth 200 mm
Dimensions 600H x 600W x 200D (mm)
DIN Accessory Spaces 15
Height 600 mm
Main Switch Type LBS
Material Mild Steel
Number of Locks 2
Number of Poles 12P
Rated Current 250(A)
Width 600 mm

Description

<p>The IPD Standard - E65 is a robust and reliable solution for industrial and commercial applications, designed to meet the rigorous demands of Australian technical environments. This product stands out with its high degree of protection, rated at IP65, ensuring it is dust-tight and protected against water jets, making it ideal for both indoor and outdoor installations.</p><p>Constructed from durable mild steel, the enclosure boasts a sleek grey finish in RAL7035, providing both aesthetic appeal and resilience against environmental elements. Its dimensions are thoughtfully crafted at 600H x 600W x 200D mm, offering ample space for installation without compromising on compactness or efficiency.</p><p>One of the key features of this product is its main switch type: LBS (Load Break Switch), which provides safe isolation and effective handling of electrical loads. The switch configuration supports up to 12 poles (12P), allowing flexibility in circuit management across various applications. This versatility makes it suitable for complex systems that require multiple connections within a single unit.</p><p>Rated with a current capacity of 250A, the Standard - E65 can handle substantial power loads while maintaining optimal performance. This feature ensures that your operations run smoothly without interruptions due to overloads or insufficient capacity.</p><p>In summary, the IPD Standard - E65 offers a dependable choice for those seeking durability, safety, and efficient operation in their electrical installations. Its thoughtful design caters to technical requirements while maintaining ease of use and reliability over time.</p>
