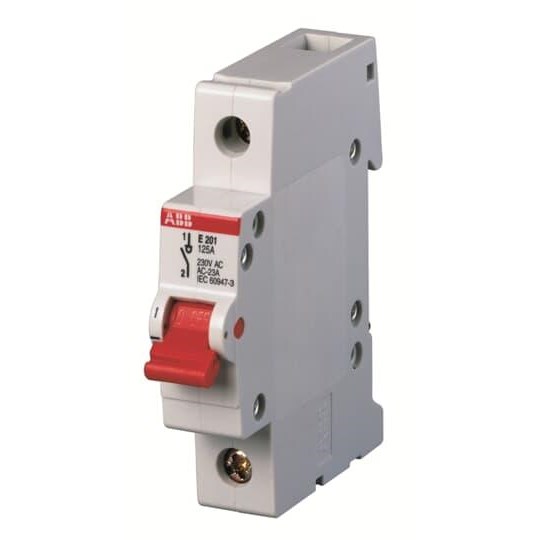

When it comes to selecting a reliable switch disconnector for your industrial or commercial setup, the E200 Series Switch Disconnector offers a robust solution tailored to meet demanding electrical requirements. Designed with precision and adhering to stringent standards, this device ensures both safety and efficiency in operations.
The switch disconnector is rated for a current of 125 A, making it suitable for medium-duty applications where dependable performance is crucial. It operates effectively within a voltage range of 230/400 VAC, aligning well with common Australian electrical systems. The rated impulse withstand voltage of 4 kV further enhances its resilience against transient overvoltages, ensuring longevity and consistent performance.
In terms of physical dimensions, the compact design boasts a width of 17.5 mm, height of 85 mm, and depth of 69 mm. These measurements enable easy integration into existing setups without requiring extensive space adjustments. The light grey RAL 7035 color not only complements industrial aesthetics but also aids in maintaining visibility within control panels.
Complying with AS/NZS 60947-3 standards underscores the product's commitment to safety and quality assurance. The degree of protection is marked at IP10, which provides basic protection against accidental contact with live parts—a critical feature in environments where operational safety cannot be compromised.
For installation flexibility, this switch disconnector supports DIN rail mounting—a popular choice due to its ease of use and adaptability in various configurations. Its power loss is minimized at just 6.1 W, contributing to energy efficiency while reducing unnecessary heat generation.
The E200 series model features one pole with a contact configuration of 0NC+1NO (normally closed plus normally open), providing straightforward operation suited for diverse application needs. It also exhibits a short circuit capacity rated at 6 kA—adequate for protecting circuits from potential damage due to unexpected surges.
To accommodate wiring demands efficiently, the device accommodates busbar cross sections greater than or equal to 16 sq-mm—ensuring compatibility with standard industry practices without compromising connectivity integrity.
Overall, whether you're upgrading an existing system or designing new installations from scratch—this switch disconnector stands out as an essential component that balances technical efficacy alongside practical usability seamlessly throughout its lifecycle within any professional environment.
