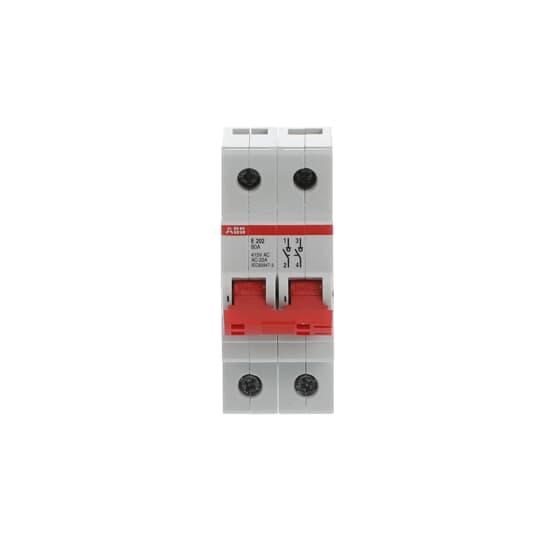

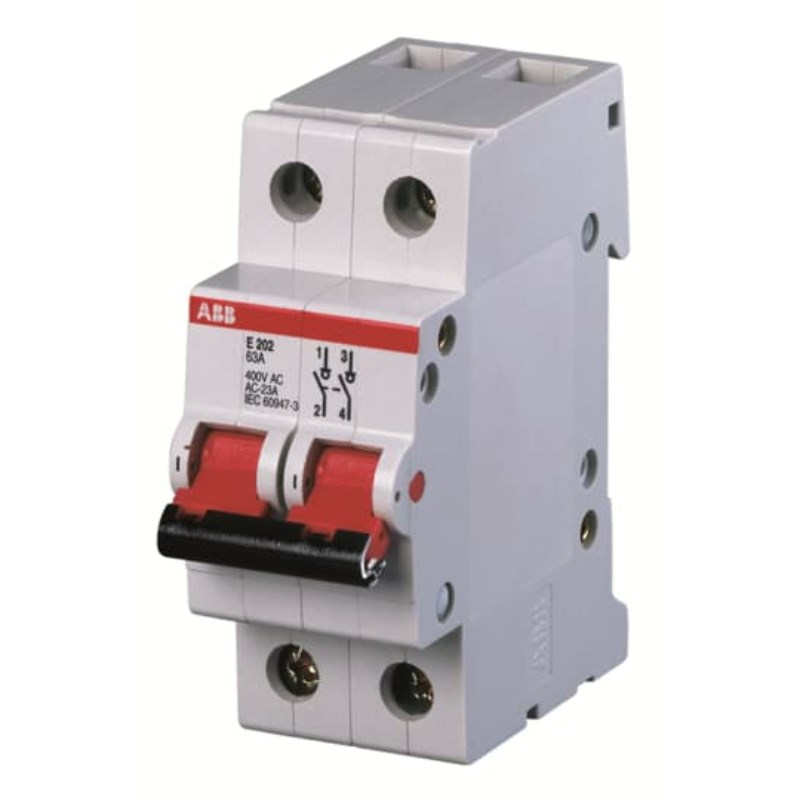

When it comes to ensuring the safety and reliability of electrical installations, selecting the right switch disconnector is crucial. The E200 Series Switch Disconnector offers a robust solution for industrial and commercial applications, meeting stringent standards while providing dependable performance.
Designed with precision, this switch disconnector supports a rated current of 80 A, making it suitable for various medium-scale operations. Its compact dimensions—35 mm in width, 85 mm in height, and 69 mm in depth—allow for efficient use of space without compromising on functionality. The device features a light grey finish (RAL 7035), which not only enhances its aesthetic appeal but also blends seamlessly into most electrical panels.
A key aspect of this product is its compliance with AS/NZS 60947-3 standards, affirming its quality and suitability for the Australian market. It operates at a rated voltage of 230/400 VAC with a frequency range between 50/60 Hz, catering to common power systems used across industries.
Safety is paramount; hence this switch disconnector boasts an impressive rated impulse withstand voltage of 4 kV. This feature ensures resilience against transient overvoltages typically encountered in electrical networks. Additionally, it has a short circuit capacity of up to 25 kA, providing reliable protection under fault conditions.
Installation flexibility is enhanced by its DIN rail mounting type—a standard method that simplifies setup and maintenance processes. The device's IP10 degree of protection indicates basic safeguarding against solid objects larger than 50 mm but does require additional enclosure considerations if exposure to dust or moisture is expected.
The E200 Series Switch Disconnector incorporates a contact configuration of 0NC+2NO (normally closed plus normally open), offering versatility in controlling circuits as needed. With each pole having a width of 17.5 mm and supporting bulbar cross-sections greater than or equal to 16 sq-mm, it accommodates robust connections necessary for secure operation.
Power efficiency hasn't been overlooked either; with power loss maintained at just 2.6 W during operation, users can expect minimal energy wastage contributing towards operational cost savings over time.
In summary, the E200 Series Switch Disconnector stands out as an adept choice for those seeking reliable switching solutions within their electrical systems. By combining technical excellence with practical design considerations like compact sizing and straightforward installation options via DIN rail compatibility—it meets diverse requirements head-on without unnecessary complexity or compromise on safety standards.
