Product Code: E204125RD

Rated current of 125 A for robust performance
Compliant with AS/NZS 60947-3 standards
Suitable for 230/400 VAC applications
Compact size: 70 mm wide, DIN Rail mountable
Supports up to 6 kA short circuit capacity

Specifications

Busbar Cross Section (mm²)	≥ 16
No. of Poles	4P
Pole Width (mm)	17.5
Power Loss (W)	6.1/Pole
Rated Conditional Short-Circuit Current - Inc (kA)	6
Rated Current (A)	125
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	4
Rated Operational Voltage DC (V)	60
Rated Operational Voltage AC (V)	230/400
Poles	4P
Current Rating (A)	125
Family	E200
AC Voltage (V)	230/400
DC Voltage (V)	60
Inc-Rated Conditional Short Circuit Capacity (kA)	6
Impulse Withstand Voltage (kV/1.2µS)	4
Dimensions (mm)	85H x 69D x 70W
Minimum Operational Voltage AC (V)	12
Minimum Operational Voltage DC (V)	12
Product Type	Switch Disconnector
Brand	ABB
Series	E200
Application	Domestic
Bulbar Cross Section	>=16 sq-mm
Cable Cross Section	25 sq-mm Top, 25 sq-mm Bottom
Colour	RAL 7035 Light Grey
Degree of Protection	IP10
Depth	69 mm
Height	85 mm
Housing Material	Grey, RAL 7035
Mounting Type	DIN Rail
Number of Poles	4
Pole Width	17.5 mm
Power Loss	6.1 W
Rated Current	125 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	440 V
Rated Voltage	230/400 VAC
Short Circuit Capacity	6 kA
Standards and Approvals	AS/NZS 60947-3
Width	70 mm

Description

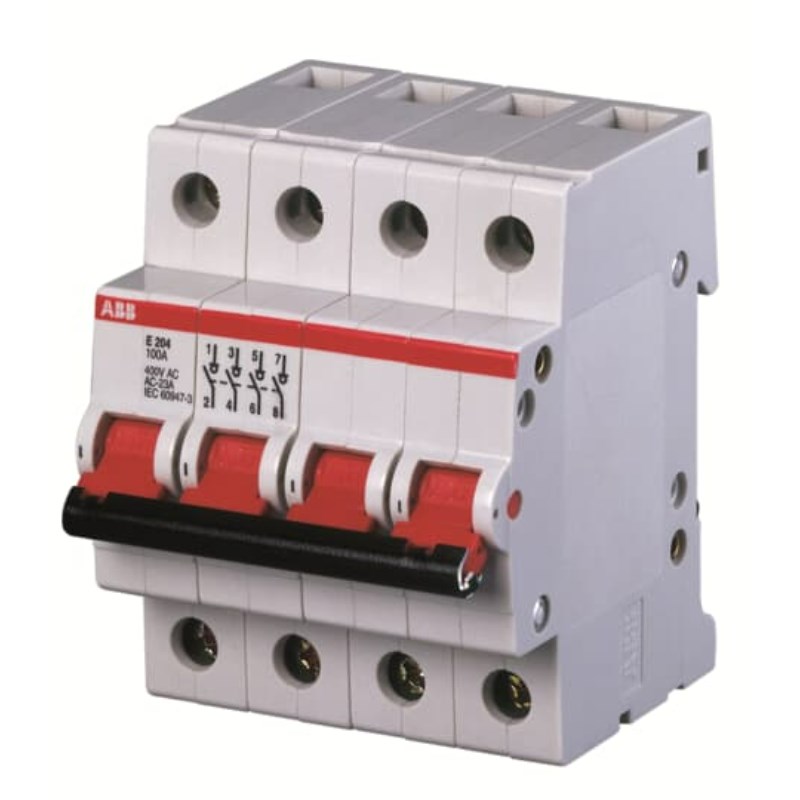

The ABB Switch Disconnector is a 4 Pole device with a current rating of 125A. It operates at a voltage of 230/400VAC and is designed for load break switching and isolation. This switch disconnector is part of ABB's domestic range, making it suitable for residential applications.
