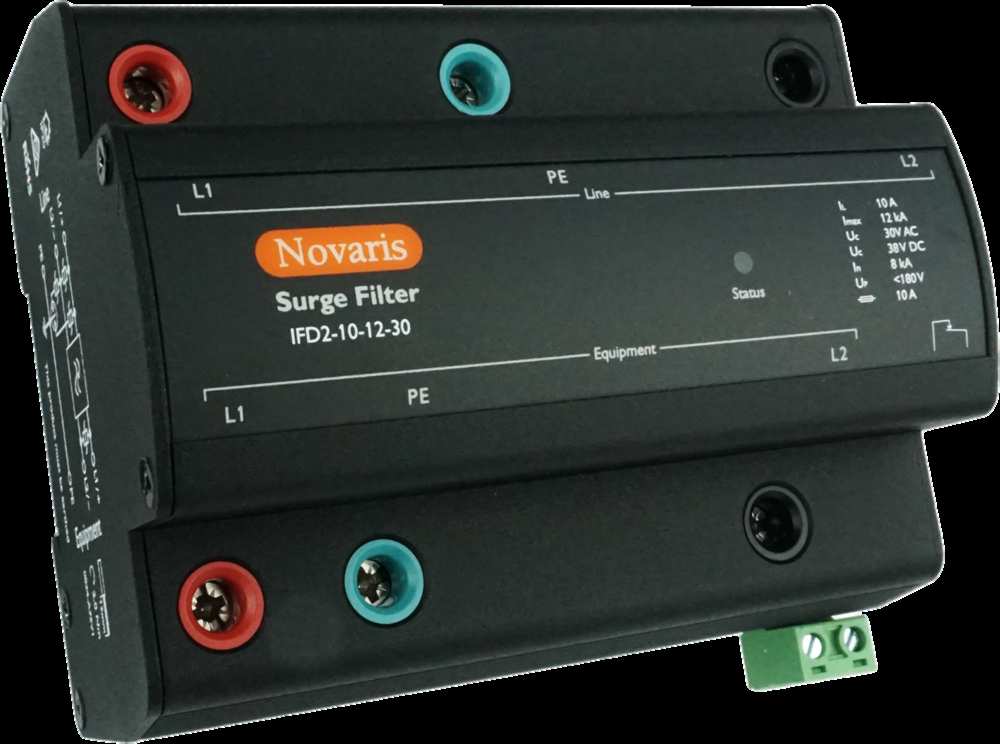

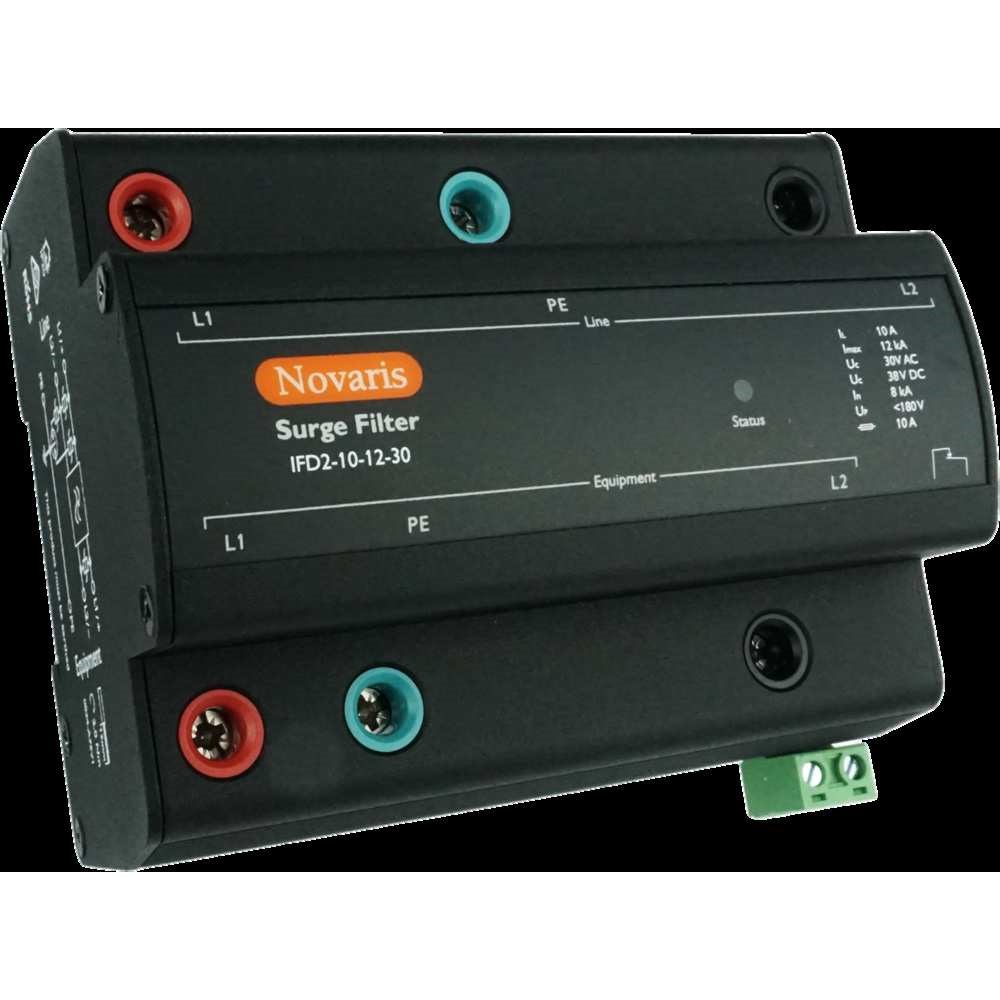

Novaris IFD2-10-12-30 Surge Filter 2 PH 10A 24VAC TS35 Aluminium IP20

Product Code: IFD2-10-12-30

  • Surge Filter for 24 VAC, 10 A applications
  • Dual-phase protection with LED indicators
  • Quick response time of less than 5 ns
  • Compact design for TS35 DIN rail mounting
  • Durable aluminium housing with IP20 rating
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 119W x 69H x 95L
Maximum Continuous Operating Voltage MCOV AC (V) 30 (L-L)
Maximum Continuous Operating Voltage MCOV DC (V) 40 (L-L)
Maximum Discharge Current (8/20µs) - Imax (kA) 12 (L-L, L-PE)
No. of Poles 2P+PE
Nominal Discharge Current (8/20µs) - In (kA) 8 (L-L, L-PE)
No. of Phases 2
Nominal Voltage AC (V) 24
Voltage Protection Level (3kA 8/20µs) - Up (kV) <0.18 (L-L), <0.28 (L-PE)
Maximum Load Current - I? (A) 10
Weight (g) 950
Product Type Surge Filter
Brand NOVARIS
Series IFD
Degree of Protection IP20
Depth 95 mm
Display Type LED Power and Thermal Failure
Fuse Rating 10 A
Height 69 mm
Humidity 5-95%
Material Aluminium
Modes of Protection L-L, L-PE
Mounting Type TS35 DIN Rail
Number of Ports 2
Operational Temperature -40 to 70 deg C
Phase 2
Rated Current 10 A
Rated Voltage 24 VAC
Response Time <5 ns
Tightening Torque 0.5 N-m, 2 N-m
Voltage Protection Level <180V (L-L), <280V (L-PE)
Weight 950 g
Width 119 mm

Description

The Novaris IFD2 range of surge filters provides multistage protection for floating AC or DC power supplies such as DC power supplies, balanced circuits for rail applications, and single phase IT systems. The device features a safe metal enclosure and operates without earth leakage, ensuring optimal performance in all installations.
