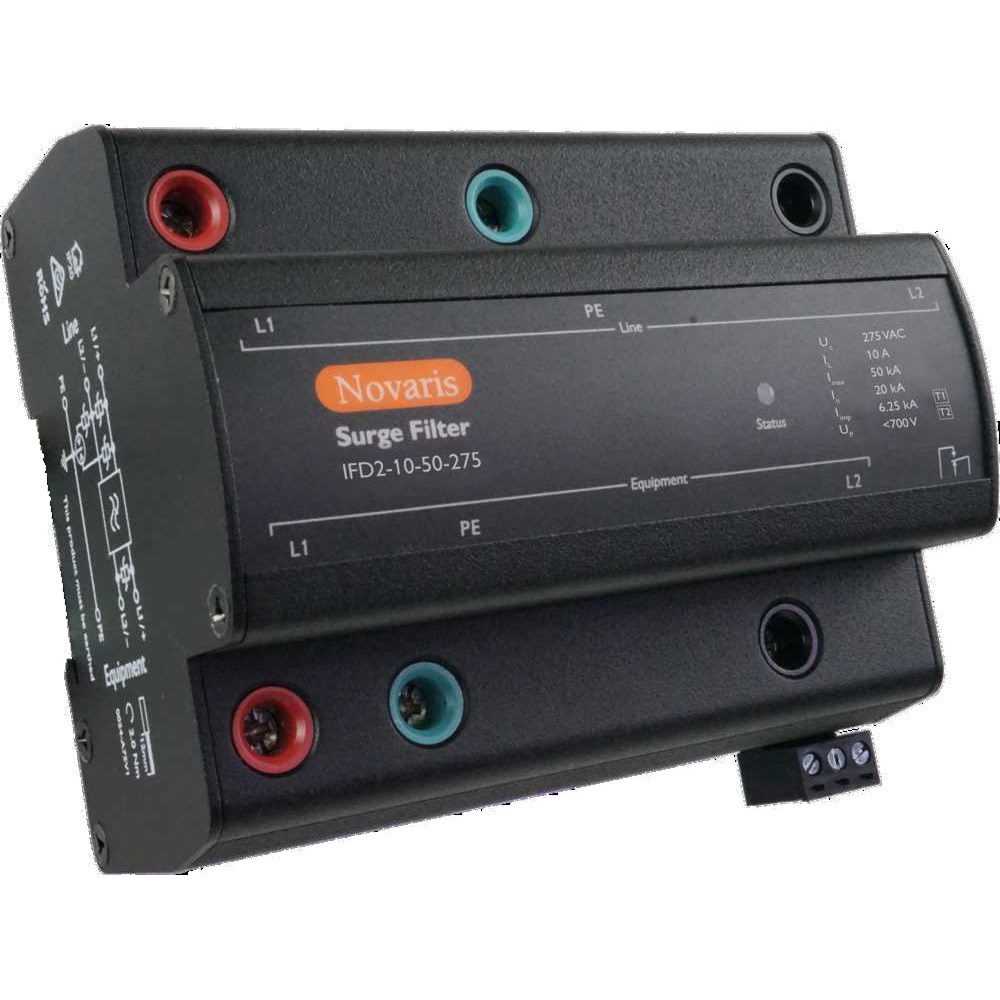

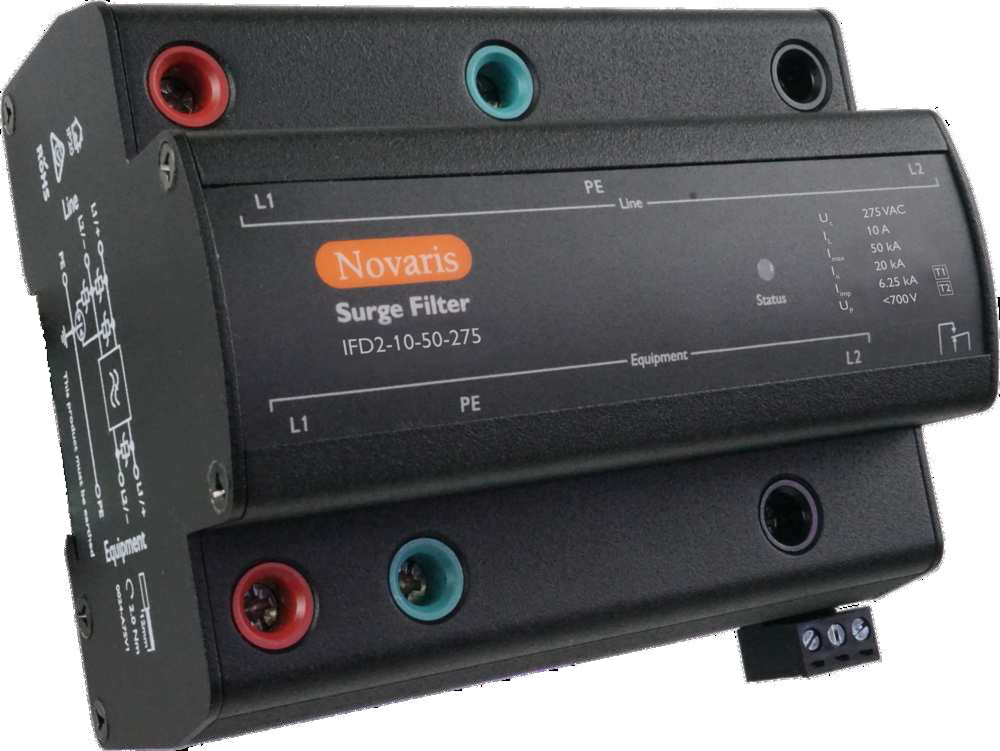

When it comes to safeguarding electrical systems, the right surge filter is essential. This robust Surge Filter offers reliable protection for industrial and commercial applications, ensuring that your equipment remains safe from unpredictable voltage spikes.
Designed to operate efficiently at a rated voltage of 230 VAC and a current capacity of 10 A, this surge filter is well-suited for moderate power applications. It operates on a two-phase system, providing comprehensive protection across multiple modes—specifically Line-to-Line (L-L) and Line-to-Protective Earth (L-PE).
One standout feature of this device is its rapid response time of less than 100 nanoseconds, which ensures immediate action against sudden surges. The Voltage Protection Level is maintained below 700 V, offering peace of mind by keeping sensitive components shielded from excessive voltages.
The LED display provides clear indicators for both power status and thermal failure alerts. It's an intuitive interface that simplifies monitoring without requiring additional tools or expertise—a practical feature for busy environments where quick diagnostics can save time.
Constructed with durable aluminium material, the unit promises longevity even under demanding conditions. Its operational temperature range spans from -40 to 70 degrees Celsius, making it adaptable to diverse climates found across Australia—from chilly southern regions to the warmer northern territories.
Installation is straightforward with its TS35 DIN Rail mounting type. With dimensions set at a width of 119 mm, height of 69 mm, and depth of 95 mm, it fits comfortably into standard enclosures while maintaining a compact footprint. Weighing in at just 950 grams, it's light enough for easy handling but sturdy enough for enduring performance.
Rated IP20 in terms of degree protection, this model offers basic resistance against dust ingress while being suitable for indoor use where moisture exposure isn't significant. The humidity tolerance ranges between five percent to ninety-five percent non-condensing—ideal for most controlled environments.
For those concerned about maintenance specifics: the tightening torque specifications are set at either 0.5 N-m or up to two N-m depending on application needs; meanwhile fuses are rated similarly at ten amps ensuring consistency throughout your setup’s protective measures.
Finally equipped with SPDT contact configuration alongside lightning impulse current capability reaching up towards six point two five kiloamperes—this product represents not only security but also adaptability when faced with nature's fiercest challenges such as lightning strikes common during stormy seasons down under!
