Specifications

No. of Phases	2
Operational Temperature Range (°C)	-40 to 70
Enclosure Material	Aluminium
Backup fuse rating (A)	10
Maximum Continuous Voltage AC (V)	460
Maximum Discharge Current (8/20µs) (kA)	50

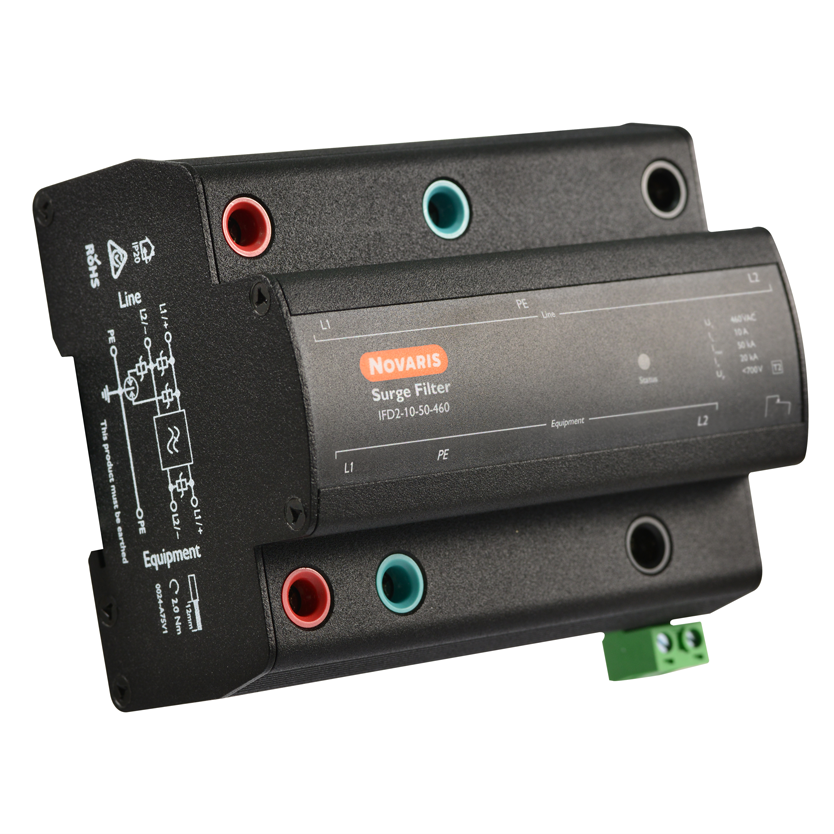

Product Type	Surge Filter
Brand	NOVARIS
Connection Type	Series
Degree of Protection	IP20
Depth	95 mm
Display Type	LED Power and Thermal Failure
Fuse Rating	10 A
Height	69 mm
Humidity	5-95%
Material	Aluminium
Modes of Protection	L-L, L-PE
Mounting Type	TS35 DIN Rail
Number of Ports	2
Operational Temperature	-40 to 70 deg C
Phase	2
Rated Current	10 A
Rated Voltage	400 VAC
Response Time	<100 ns
Tightening Torque	0.5 N-m, 2 N-m
Voltage Protection Level	<700 V
Weight	950 g
Width	119 mm
