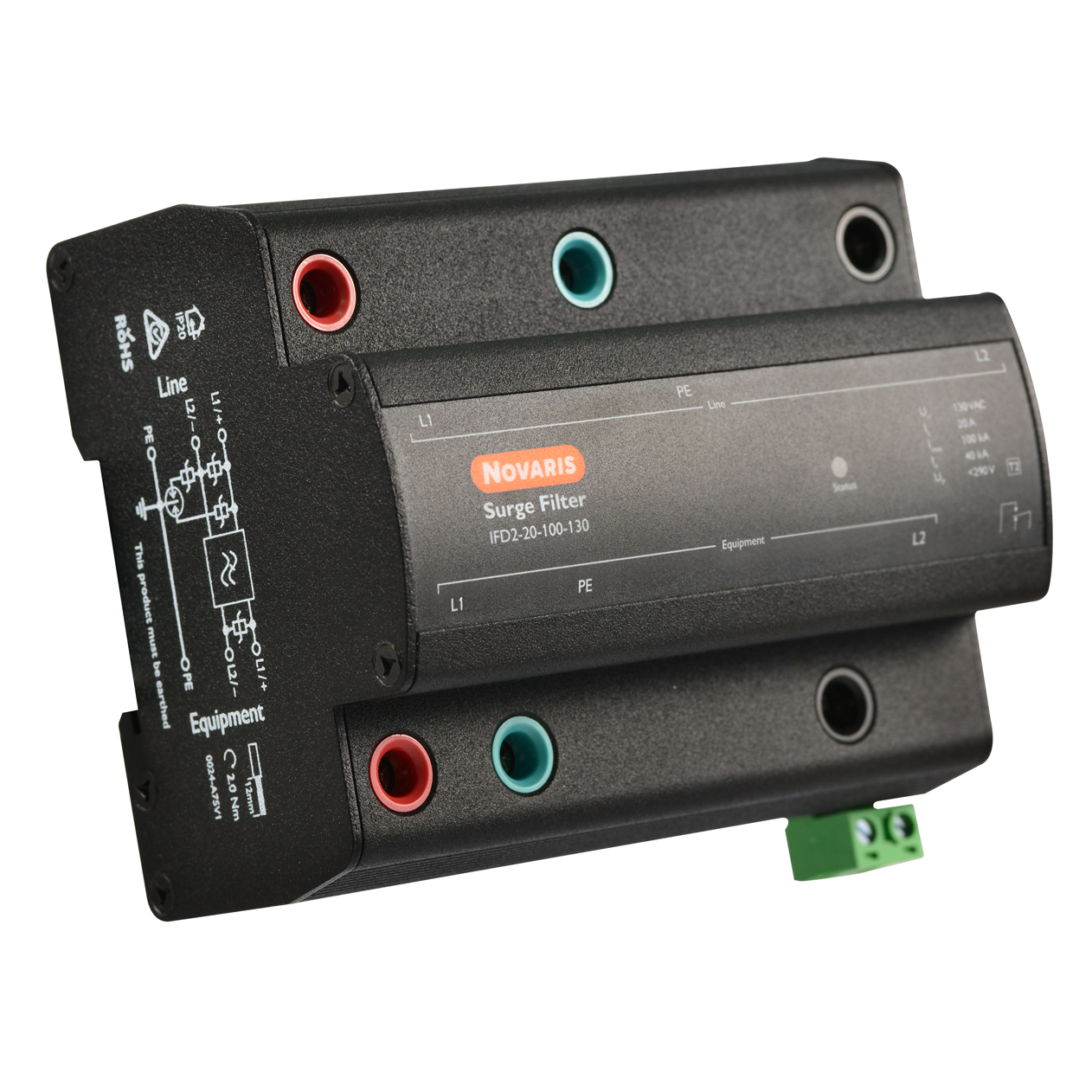

When it comes to safeguarding your electrical systems, choosing a reliable surge filter is crucial. This particular model stands out with its robust features tailored for industrial and commercial use. Operating at a rated voltage of 110 VAC and supporting a current of up to 20 A, this surge filter is designed for two-phase applications.
The unit is constructed from durable aluminium, ensuring longevity while maintaining a manageable weight of 950 g. It offers an IP20 degree of protection, making it suitable for environments where dust ingress may be present but not water exposure. Designed to withstand operational temperatures ranging from -40 to 70 degrees Celsius, this surge filter can handle extreme conditions without compromising performance.
For easy installation, the device mounts on a TS35 DIN rail system. Its compact dimensions—119 mm in width, 69 mm in height, and 95 mm in depth—allow for efficient use of space within electrical panels or enclosures. The LED display provides clear indicators for power status and thermal failure alerts, enabling quick diagnostics and maintenance checks.
The surge filter operates efficiently with a response time of less than 100 nanoseconds (ns), ensuring rapid protection against transient voltage spikes. With modes of protection covering Line-to-Line (L-L) and Line-to-Protective Earth (L-PE), it effectively shields sensitive equipment from overvoltage damage.
Humidity tolerance ranges between 5% to 95%, making the unit adaptable to various environmental conditions without risk of corrosion or malfunction. The tightening torque specifications are set at 0.5 N-m and 2 N-m, providing secure connections during installation.
Equipped with a Single Pole Double Throw (SPDT) contact configuration and backed by a fuse rating of 20 A, the device adds an extra layer of safety by preventing overloads that could potentially harm connected equipment. The voltage protection level is capped at less than 290 V, offering reassurance that your systems remain safeguarded against unexpected surges.
In summary, this surge filter combines durability with advanced protective features suitable for demanding settings where reliability cannot be compromised.
