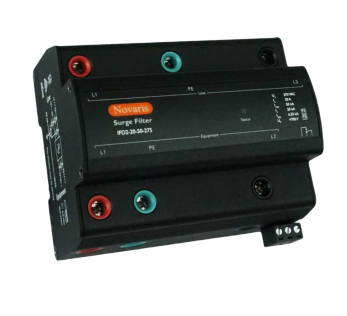

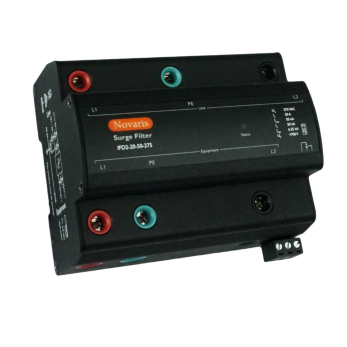

For those in the industrial and commercial sectors seeking a reliable surge protection solution, this Surge Filter offers an array of essential features tailored to meet stringent technical requirements. Designed for robust performance, it operates efficiently with a rated voltage of 230 VAC and a rated current of 20 A. This two-phase device ensures dependable operation across various applications.
A significant highlight is its LED display, which provides clear indicators for power status and thermal failure, ensuring users can monitor performance at a glance. The IP20 degree of protection indicates that while it's safeguarded against solid objects over 12 mm in size, it's best suited for indoor environments where moisture isn't a concern.
Installation is straightforward thanks to its TS35 DIN Rail mounting type, making integration into existing systems seamless. With dimensions measuring 119 mm in width, 69 mm in height, and 95 mm in depth, it fits comfortably within standard enclosures without taking up excessive space.
Engineered from durable aluminium material, the unit weighs in at 950 g—balancing sturdiness with manageable handling during installation or maintenance. Its operational temperature range from -40 to 70 degrees Celsius highlights its ability to function reliably under extreme conditions common within industrial settings.
The product's response time is impressively swift at less than 100 nanoseconds (ns), providing rapid intervention against surges. It accommodates humidity levels between 5% and 95%, ensuring stable performance even in varying environmental conditions.
When it comes to electrical connections, the tightening torque ranges from 0.5 N-m to 2 N-m depending on specific requirements—offering flexibility during setup. The fuse rating aligns with its current capacity at 20 A for consistent protection.
Equipped with Single Pole Double Throw (SPDT) contact configuration and capable of handling lightning impulse currents up to 6.25 kA, this surge filter ensures comprehensive defense against electrical anomalies. Its voltage protection level remains below <700 V while offering modes of protection between Line-to-Line (L-L) and Line-to-Protective Earth (L-PE), enhancing safety protocols across installations.
This Surge Filter stands as a robust choice for professionals seeking efficiency and reliability without compromising on essential protective measures required by modern electrical systems.
