Specifications

Dimensions (mm)	119W x 69H x 95D
Nominal Discharge Current (8/20µs) - In (kA)	20 (L-L), 40 (L-PE)
Enclosure Material	Aluminium
Maximum Temperature (°C)	70
Minimum Temperature (°C)	-40
Weight (g)	950
Minimum Relative Humidity	5%
Operating Humidity	95%
Maximum Continuous Voltage DC (V)	615
Maximum Continuous Voltage AC (V)	460
Maximum Discharge Current (8/20µs) (kA)	100 (L-L), 40 (L-PE)

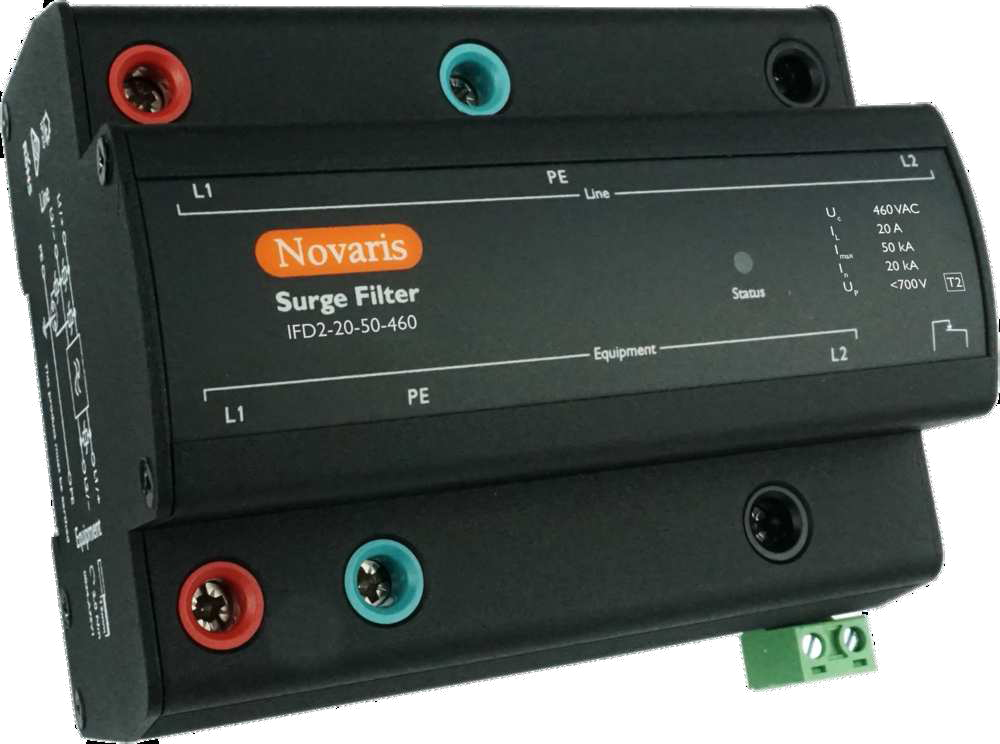

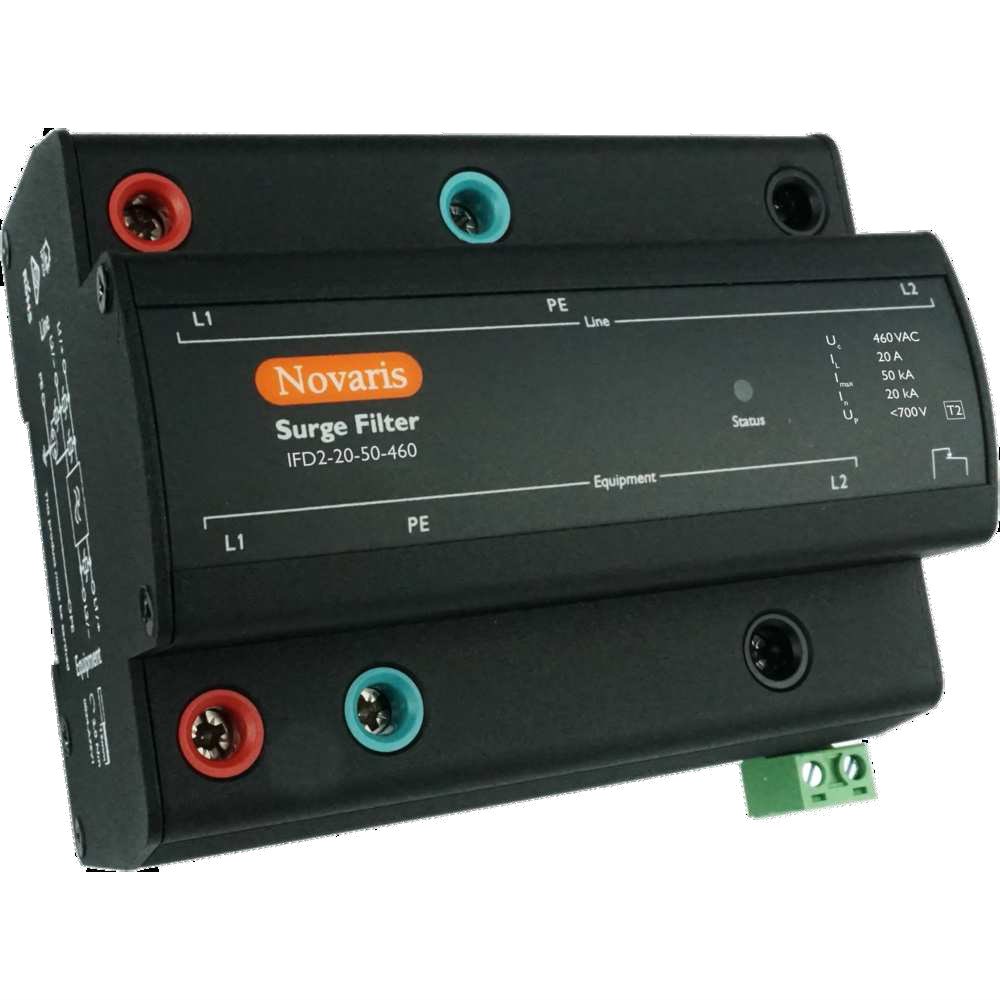

Product Type	Surge Filter
Brand	NOVARIS
Degree of Protection	IP20
Depth	95 mm
Display Type	LED Power and Thermal Failure
Enclosure Coating Material	Black powdercoat
Fuse Rating	20 A
Height	69 mm
Humidity	5-95%
Material	Aluminium
Modes of Protection	L-L, L-PE
Mounting Type	TS35 DIN Rail
Number of Ports	2
Operational Temperature	-40 to 70 deg C
Phase	2
Rated Current	20 A
Rated Voltage	400 VAC
Response Time	<100 ns
Tightening Torque	0.5 N-m, 2 N-m
Voltage Protection Level	<700 V
Weight	950 g
Width	119 mm
