Specifications

Nominal Discharge Current (8/20µs) - In (kA)	40
No. of Phases	2
Nominal Voltage AC (V)	230
Operational Temperature Range (°C)	-40 to 70
Voltage Protection Level - Up (kV)	0.7
Response Time (ns)	100
Enclosure Material	Aluminium
Backup fuse rating (A)	32
Dimensions (mm)	119W x 69H x 95D
Maximum Load Current - I? (A)	32
Weight (g)	950
Maximum Continuous Voltage DC (V)	350
Maximum Continuous Voltage AC (V)	275
Maximum Discharge Current (8/20µs) (kA)	100
No. of Ports	2

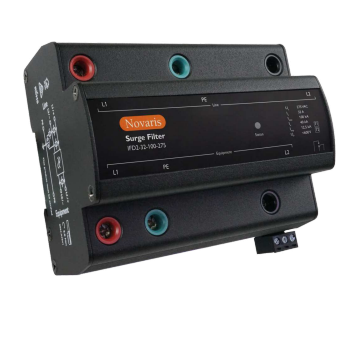

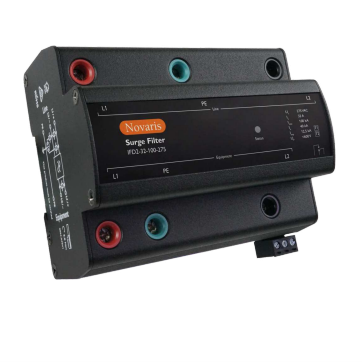

Product Type	Surge Filter
Brand	NOVARIS
Connection Type	Series
Contact Configuration	SPDT
Degree of Protection	IP20
Depth	95 mm
Display Type	LED Power and Thermal Failure
Fuse Rating	32 A
Height	69 mm
Humidity	5-95%
Lightning Impulse Current	12.5 kA
Material	Aluminium
Modes of Protection	L-L, L-PE
Mounting Type	TS35 DIN Rail
Number of Ports	2
Operational Temperature	-40 to 70 deg C
Phase	2
Rated Current	32 A
Rated Voltage	230 VAC
Response Time	<100 ns
Tightening Torque	0.5 N-m, 2 N-m
Voltage Protection Level	<700 V
Weight	950 g
Width	119 mm
