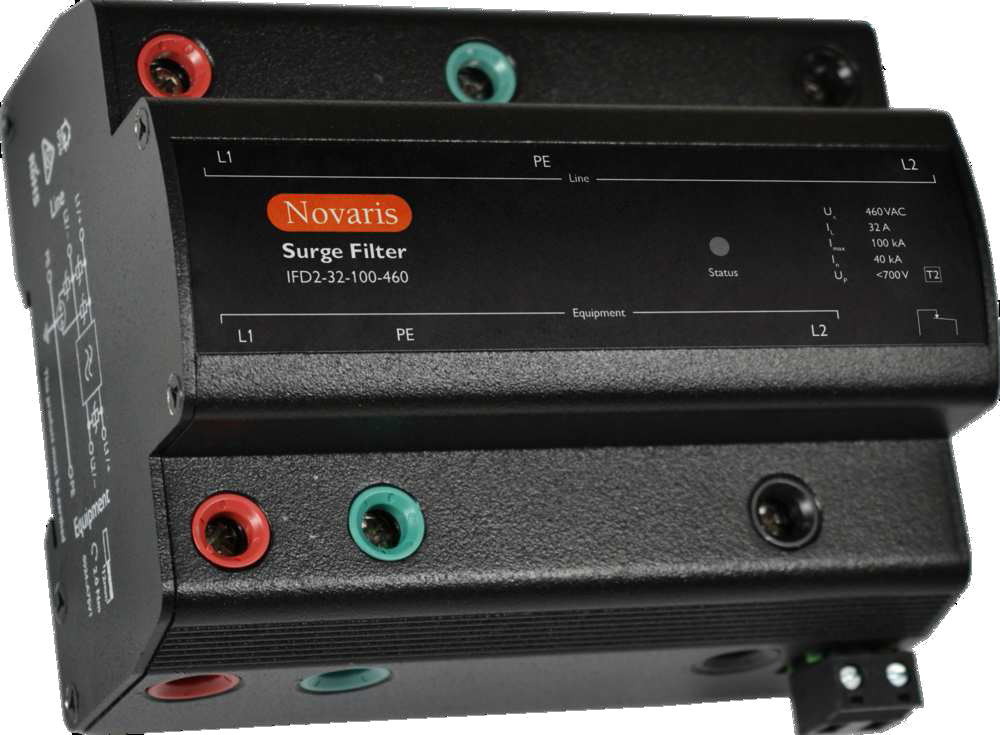

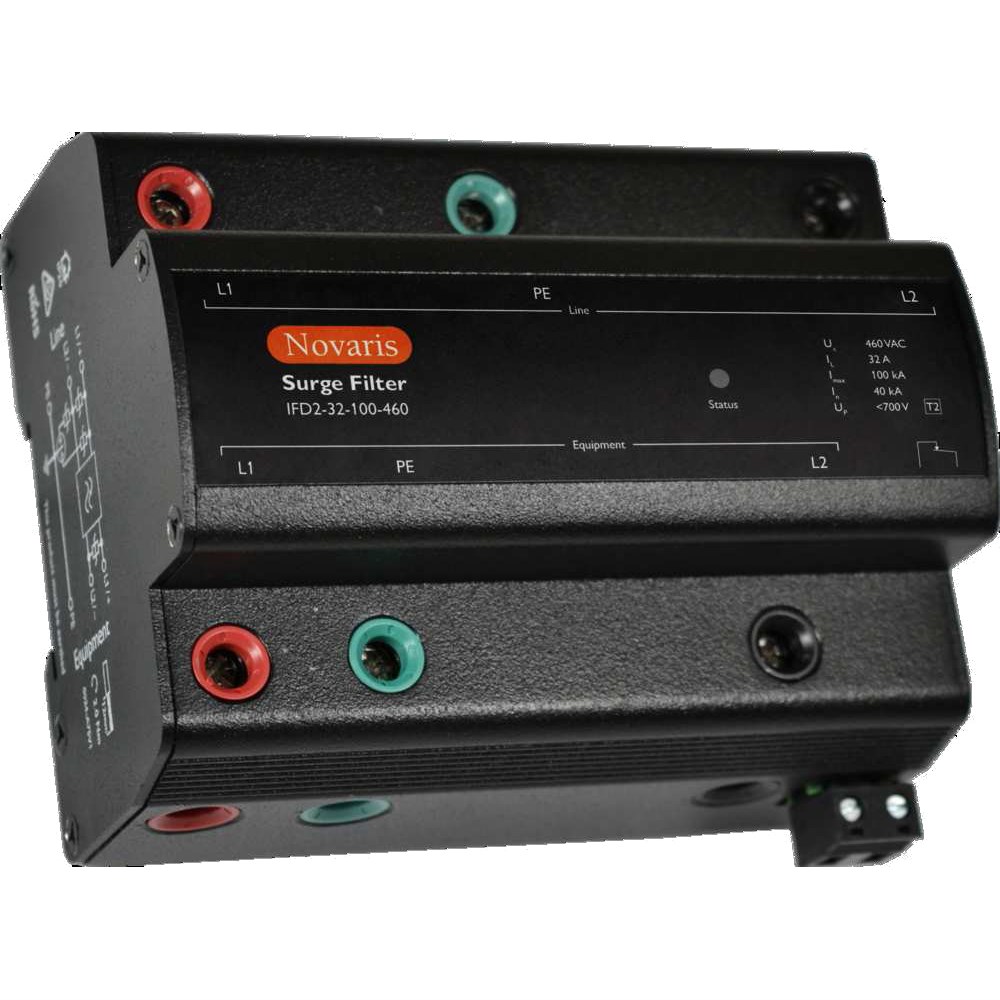

Novaris IFD2-32-100-460 Surge Filter 2 PH 32A 400VAC TS35 Aluminium IP20

Product Code: IFD2-32-100-460

  • Surge filter for 400 VAC, 32 A systems
  • LED display for power and thermal status
  • IP20 rated with TS35 DIN rail mounting
  • Quick response time of <100 ns
  • Protects in L-L, L-PE modes
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 119W x 69H x 95D
Enclosure Material Aluminium
Maximum Temperature (&#176;C) 70
Minimum Temperature (&#176;C) -40
Weight (g) 950
Mounting Method TS35 DIN Rail
Minimum Relative Humidity 5%
Operating Humidity 95%
Product Type Surge Filter
Brand NOVARIS
Degree of Protection IP20
Depth 95 mm
Display Type LED Power and Thermal Failure
Enclosure Coating Material Black powdercoat
Fuse Rating 32 A
Height 69 mm
Humidity 5-95%
Material Aluminium
Modes of Protection L-L, L-PE
Mounting Type TS35 DIN Rail
Number of Ports 2
Operational Temperature -40 to 70 deg C
Phase 2
Rated Current 32 A
Rated Voltage 400 VAC
Response Time <100 ns
Tightening Torque 0.5 N-m, 2 N-m
Voltage Protection Level <700 V
Weight 950 g
Width 119 mm
