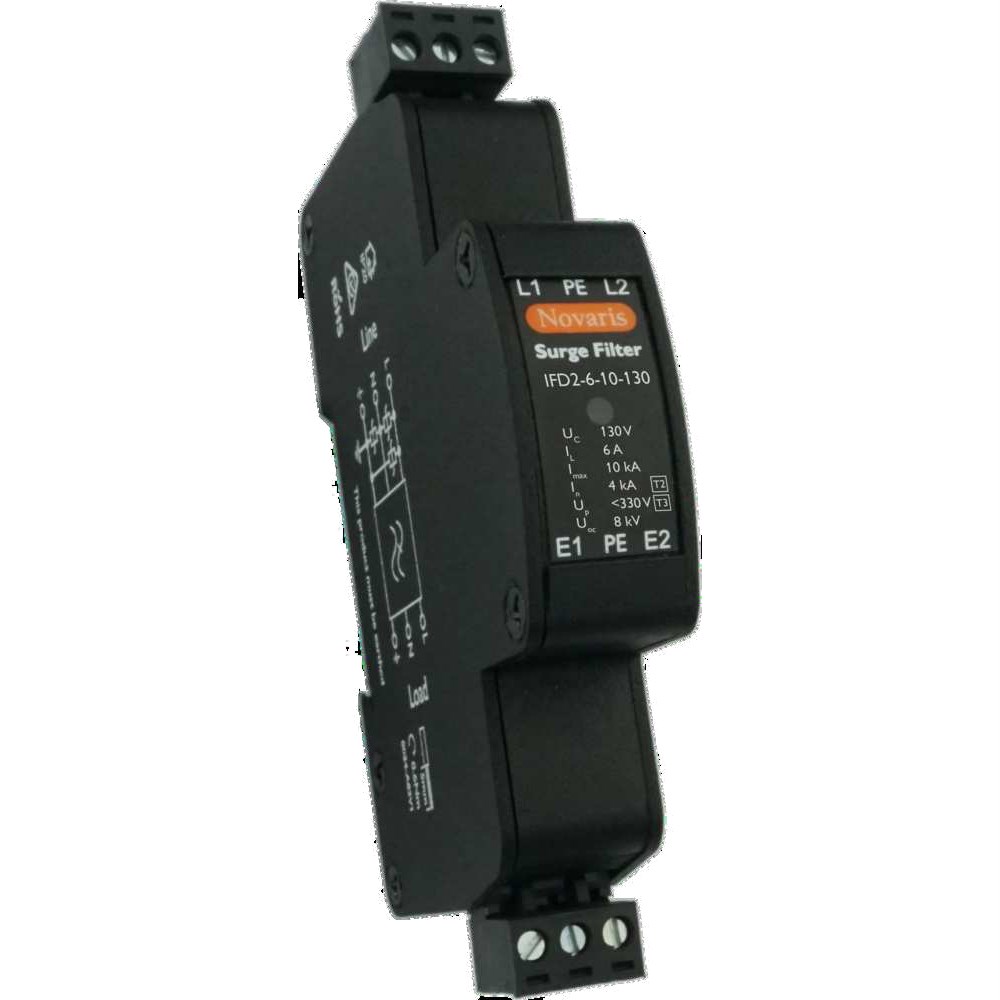

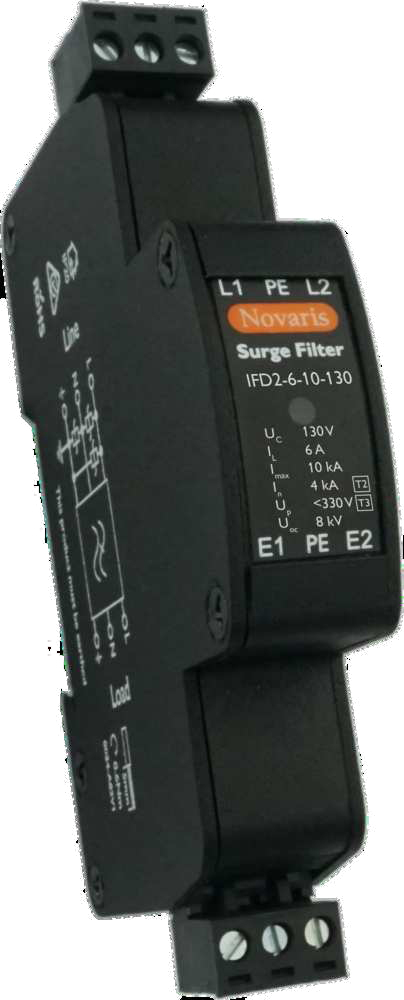

When it comes to safeguarding your electrical systems, a reliable surge filter is crucial. This particular surge filter is designed for industrial and commercial applications, ensuring your equipment remains protected against voltage spikes and surges.
Operating at a rated voltage of 110 VAC with a rated current of 6 A, this two-phase surge filter offers robust protection. It features LED indicators that display power status and thermal failure, providing clear visual feedback on its operational state. The device boasts an IP20 degree of protection, suitable for indoor environments where dust ingress can be controlled.
Installation is straightforward with the TS35 DIN rail mounting type, making integration into existing setups seamless. The compact design—measuring 18 mm in width, 69 mm in height, and 115 mm in depth—ensures it fits comfortably within limited spaces without compromising performance.
The unit operates efficiently across a wide temperature range from -40 to 70 degrees Celsius, making it versatile enough for various environmental conditions. It has been constructed from durable aluminium material and weighs just 350 grams, striking a balance between sturdiness and ease of handling during installation or maintenance.
One of the standout features is its impressive response time of less than 100 nanoseconds (ns), which ensures rapid reaction to any surge events. Additionally, it maintains functionality in humidity levels ranging from 5% to 95%, highlighting its adaptability to different climate conditions.
For secure connections, the tightening torque is set at 0.5 N-m. With two poles and a fuse rating matching the rated current at 6 A, this surge filter provides consistent performance while safeguarding connected devices.
The voltage protection level stands at less than 330V for both line-to-line (L-L) and line-to-protective earth (L-PE) configurations. Furthermore, it offers comprehensive modes of protection including (+)-(-), (+)-PE, and (-)-PE pathways.
In terms of safety under extreme conditions like short circuits, the device supports a rated short circuit current up to an impressive 10 kA. This feature ensures that even under severe fault conditions your system remains shielded effectively.
Overall this surge filter combines efficiency with essential protective features tailored for demanding applications within industrial settings ensuring peace-of-mind operation over long periods without unnecessary interruptions or failures due to power surges or related issues.
