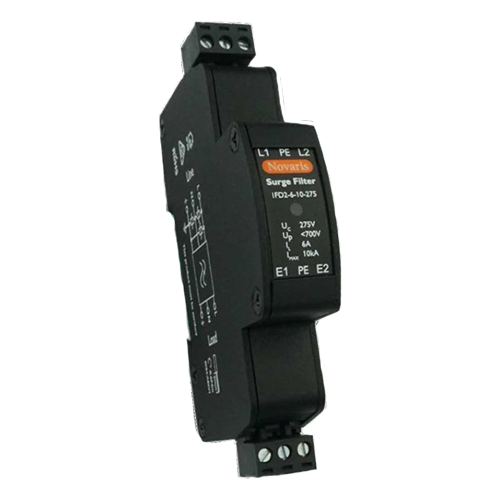

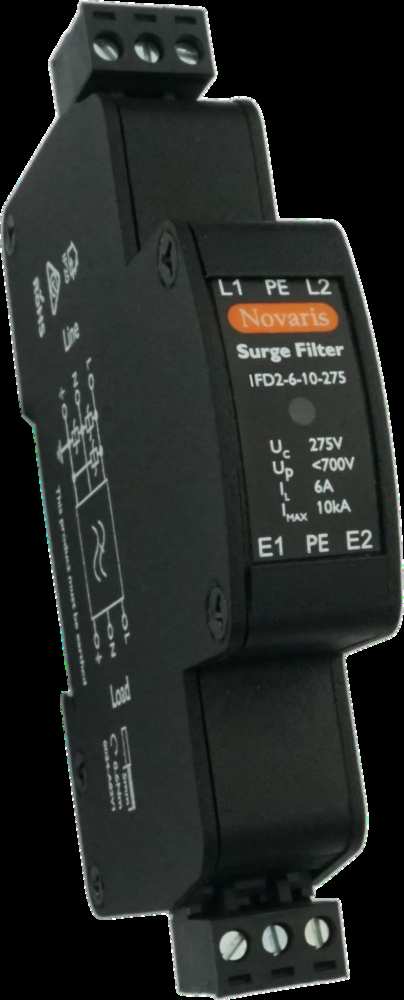

When selecting a surge filter for industrial or commercial applications, it's crucial to consider key specifications that ensure compatibility and reliability within your electrical systems. This surge filter is designed with precision to meet demanding environments, providing robust protection against voltage surges.
Operating at a rated voltage of 230 VAC and a current capacity of 6 A, this surge filter is suitable for various applications requiring dependable performance. It features a two-phase configuration, which enhances its versatility across different setups. The device's LED display offers clear indications of power status and thermal failures, allowing for straightforward monitoring and maintenance.
The unit’s degree of protection stands at IP20, making it suitable for indoor installations where exposure to dust or moisture is minimal. Its compact design—measuring 18 mm in width, 69 mm in height, and 115 mm in depth—facilitates easy integration into existing systems without consuming excessive space on the TS35 DIN rail mounting setup.
With an operational temperature range from -40 to 70 degrees Celsius and humidity tolerance from 5% to 95%, this surge filter can withstand harsh environmental conditions while maintaining optimal functionality. Constructed from durable aluminium material, it ensures longevity even under challenging circumstances.
For installation efficiency, the product requires a tightening torque of just 0.5 N-m. It incorporates two poles with a fuse rating matching its current capacity at 6 A. The voltage protection level is set below 700 V, effectively safeguarding equipment against potential damage due to transient overvoltages.
This surge filter provides comprehensive modes of protection including line-to-line (+)-(-), line-to-earth (+)-PE, and neutral-to-earth (-)-PE configurations. This ensures that all vulnerable points within your system are adequately protected against electrical disturbances.
Capable of handling short circuit currents up to 10 kA, this device reinforces safety by minimizing risks associated with unexpected fault conditions. Weighing only 350 grams, it offers ease of handling during installation or maintenance procedures without compromising on structural integrity or performance capabilities.
In summary, this surge filter presents itself as an effective solution for those seeking reliable overvoltage protection tailored specifically for industrial environments where precision engineering meets practical application needs.
