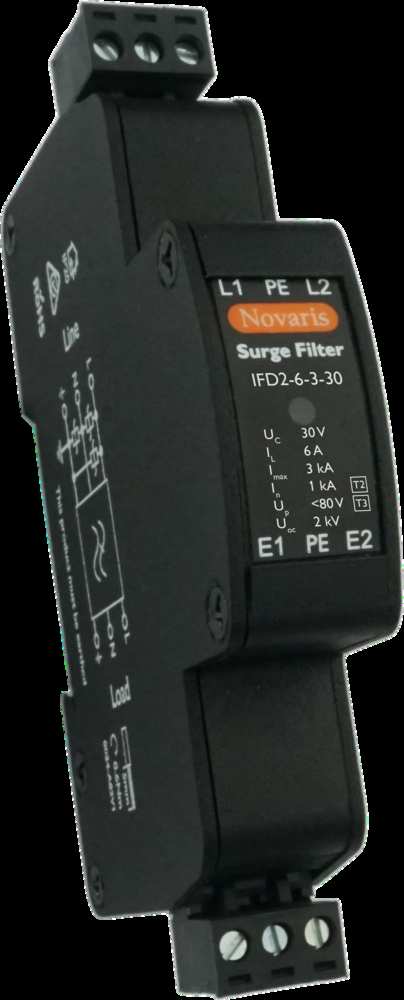

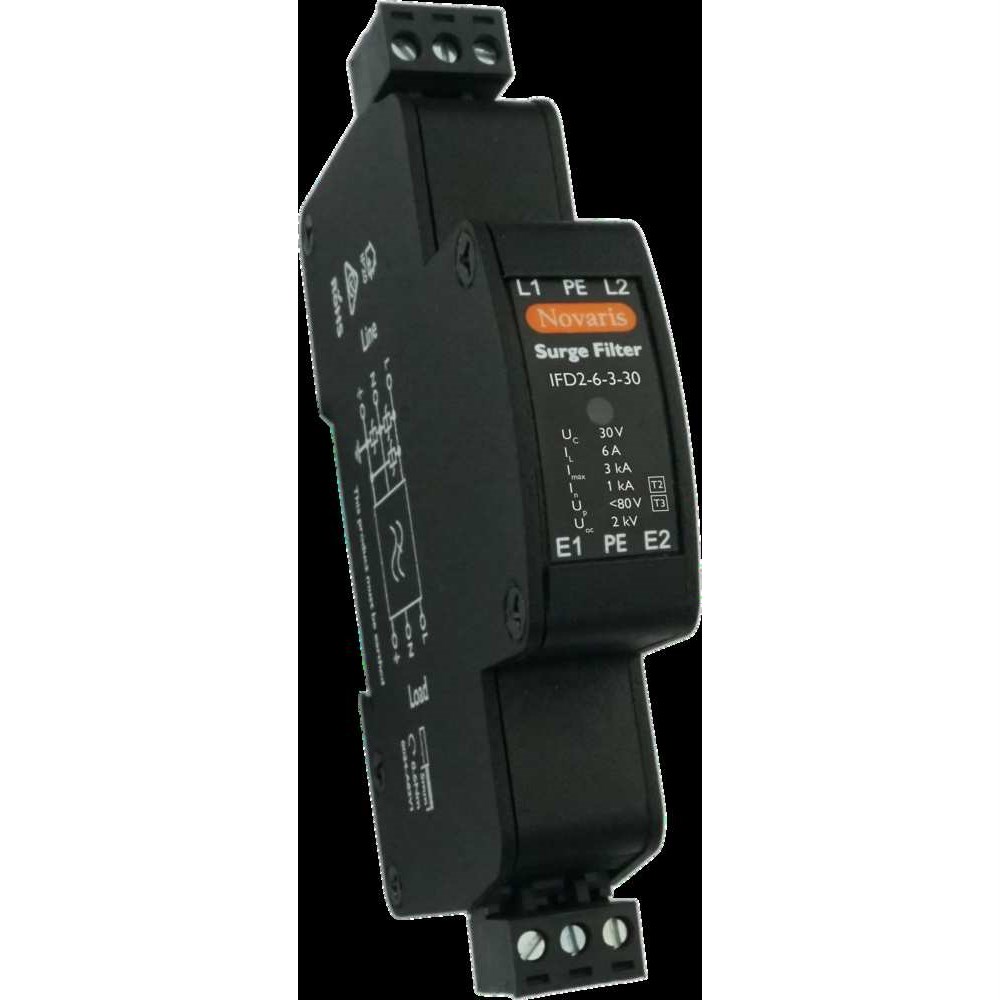

Novaris IFD2-6-3-30 Surge Filter 2 PH 6A 24VAC TS35 DIN Rail Mount Aluminium IP20

Product Code: IFD2-6-3-30

  • Surge filter for 24VAC, 6A applications
  • LED display for power and thermal status
  • Compact size: 18mm width, IP20 protection
  • Quick response time under 100ns
  • Operates in extreme temps: -40 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Continuous Operating Voltage MCOV AC (V) 30 (L-L)
Maximum Continuous Operating Voltage MCOV DC (V) 40 (L-L)
Maximum Discharge Current (8/20µs) - Imax (kA) 3 (L-L, L-PE)
No. of Poles 2P+PE
Nominal Discharge Current (8/20µs) - In (kA) 1 (L-L, L-PE)
No. of Phases 2
Nominal Voltage AC (V) 24
Dimensions (mm) 18W x 69H x 115L
Voltage Protection Level (3kA 8/20µs) - Up (kV) <0.08 (L-L, L-PE)
Maximum Load Current - I? (A) 6
Weight (g) 350
Product Type Surge Filter
Brand NOVARIS
Series IFD
Degree of Protection IP20
Depth 115 mm
Display Type LED Power and Thermal Failure
Fuse Rating 6 A
Height 69 mm
Humidity 5-95%
Material Aluminium
Modes of Protection (+)-(-), (+)-PE, (-)-PE
Mounting Type TS35 DIN Rail
Number of Ports 2
Operational Temperature -40 to 70 deg C
Phase 2
Rated Current 6 A
Rated Short Circuit Current 3 kA
Rated Voltage 24 VAC
Response Time <100 ns
Tightening Torque 0.5 N-m
Voltage Protection Level <80V (L-L), <80V (L-PE)
Weight 350 g
Width 18 mm

Description

The Novaris IFD2 range of surge filters offers three stages of protection for floating AC or DC power supplies. Ideal for applications such as DC power supplies and single phase IT systems, it ensures safety with its metal enclosure and zero earth leakage feature.
