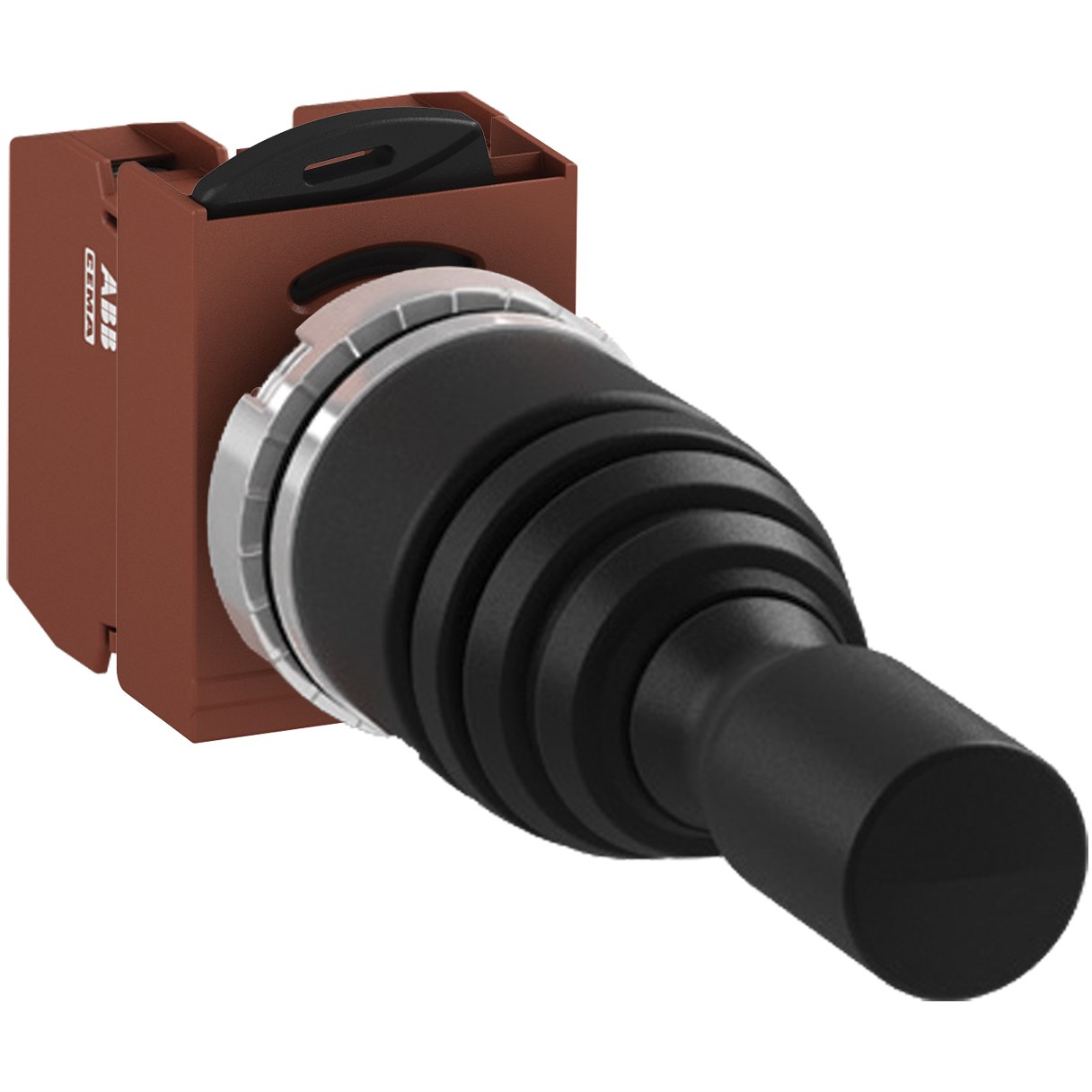

ABB MMJ2LA11 Illuminated Joystick Operator Switch 48VAC/VDC 22mm dia Mounting Hole 1NO+1NC

Product Code: MMJ2LA11

Illuminated selector switch with white lamp
Operates at 48 VAC/VDC, 15 mA
Wide temp range: -30 to 70°C
Long service life of 100,000 hrs
Complies with CAN/CSA, IEC/EN, UL standards

Specifications

Contacts	1NO + 1NC
No. of Positions	2
Product Type	Joystick Operator Switch
Brand	ABB
Illumination	Illuminated
Lamp Base	BA9S
Lamp Colour	White
Mode of Operation	Maintained
Operational Temperature	-30 to 70 deg C
Rated Current	15 mA
Rated Voltage	48 VAC/VDC
Service Life	100000 hrs
Standards and Approvals	CAN/CSA C22.2 #14, IEC/EN 60947-1, IEC/EN 60947-5-1, UL 508
Storage Temperature	-40 to 70 deg C
Weight	0.002 kg

Documents

IPD Product Catalogue

IPD Product Catalogue V17
