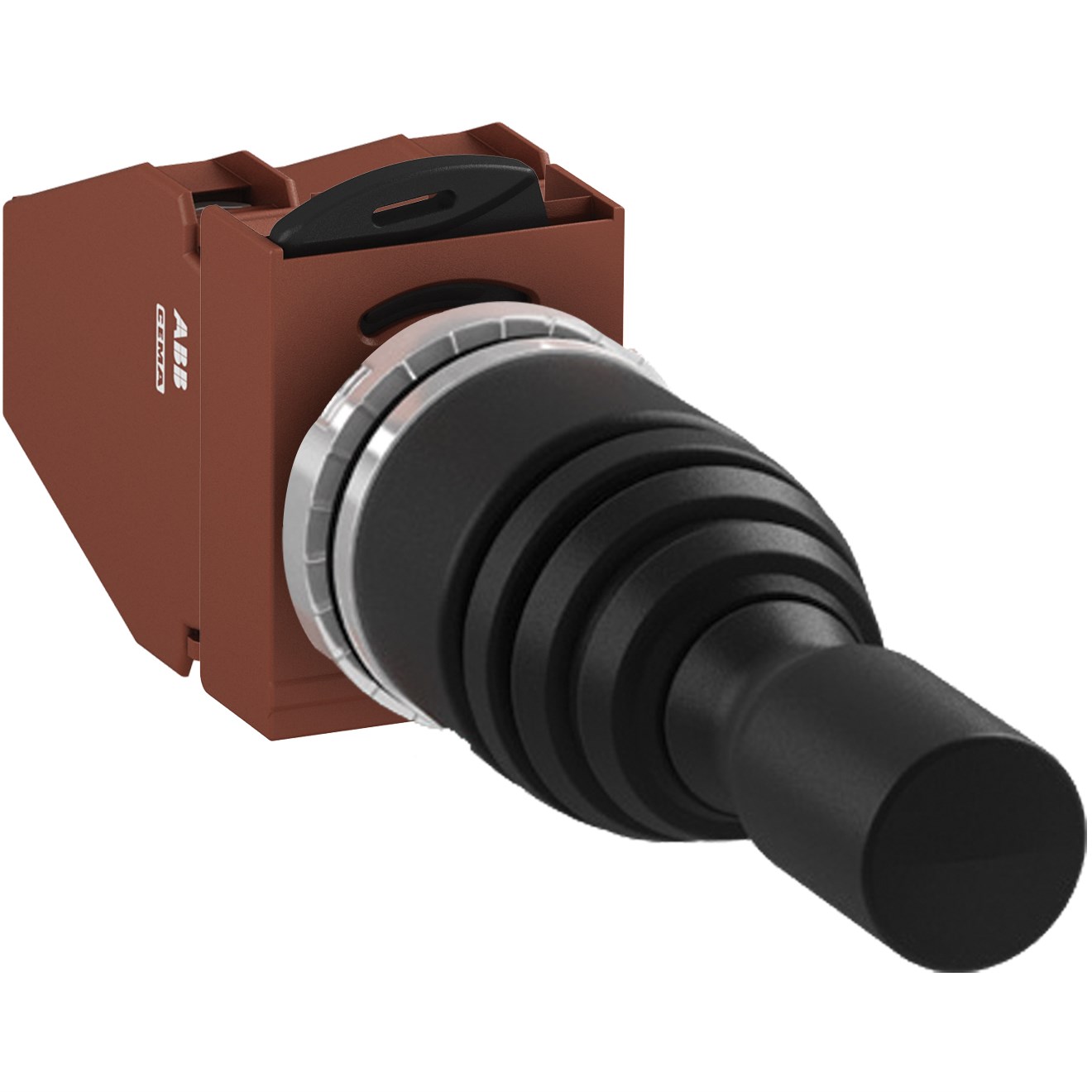

ABB MMJ4LO04 Joystick Operator Switch Maintained 22mm dia Mounting Hole 4NC

Product Code: MMJ4LO04

  • Selector switch with maintained actuator
  • Wide temp range: -25 to 70°C operational
  • High protection: IP20, IP66, IP67, IP69K
  • Screw terminals with 0.8 N-m torque
  • Rated insulation voltage of 300V
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 4NC
No. of Positions 4
Product Type Joystick Operator Switch
Brand ABB
Actuator Type Maintained
Contact Configuration 1NO+1NC
Degree of Pollution IP3
Degree of Protection IP20, IP66, IP67, IP69K
Mode of Operation Momentary
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 300 V
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Tightening Torque 0.8 N-m
Width 30 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
