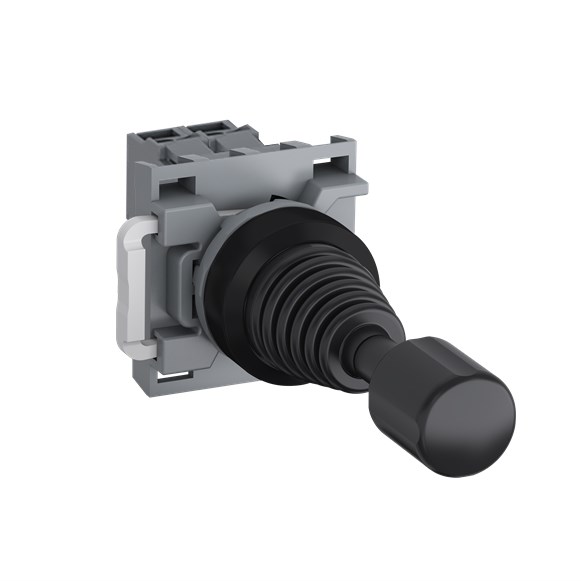

ABB MPJLA2V11 Illuminated Vertical Joystick Operator Switch With Latching 240 V 22mm dia Mounting Hole 1NO+1NC

Product Code: MPJLA2V11

  • Illuminated selector switch for easy visibility
  • Wide temp range: -25 to 70°C operation
  • High protection: IP20, IP66, IP67, IP69K
  • Screw clamp connection for secure fit
  • Compatible with 3W max bulb
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
Sub-Function 2-Position
Actuating Direction Vertical
Bezel Material Plastic
Product Type Vertical Joystick Operator Switch With Latching
Brand ABB
Actuator Type Pilot Light Head
Connecting Capacity 1 x 0.75-2.5 sq-mm Flexible, 2 x 0.75-2.5 sq-mm Flexible, 1 x 0.75-2.5 sq-mm Solid, 2 x 0.75-2.5 sq-mm Solid
Connection Type Screw Clamp
Degree of Pollution IP3
Degree of Protection IP20, IP66, IP67, IP69K
Function Maintained
Illumination Illuminated
Lamp Colour Yellow
Lamp Type BA9S
Mode of Operation Maintained
NEMA Rating NEMA 1, 12, 13, 3R, 4, 4x
Operational Temperature -25 to 70 deg C
Rated Current 1 A, 1.5 A
Rated Frequency 50/60 Hz
Rated Voltage 240 V
Storage Temperature -40 to 85 deg C
Suitable For Use With 3 W Max Bulb
Terminal Type Screw
Tightening Torque 0.9 N-m
Weight 0.018 kg
Wire Stripping Length 8 mm

Description

The Joystick Kit Vertical with Latching Function is a modular plastic range product designed for engineers. It features a 2-position design with 1 normally open (NO) and 1 normally closed (NC) maintained switch. The front of the joystick kit has an IP66, IP67, and IP69K rating, ensuring its durability and protection against dust and water.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
