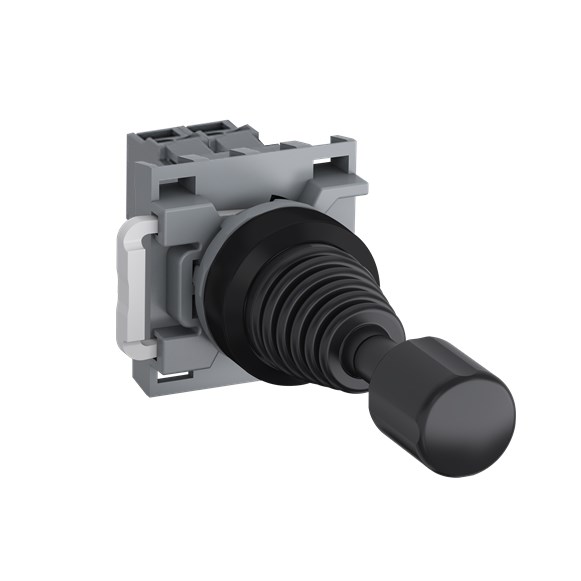

ABB MPJLA411 Illuminated Joystick Operator Switch With Latching 12VDC 22mm dia Mounting Hole 1NO+1NC

Product Code: MPJLA411

  • Illuminated selector switch with yellow LED
  • Wide temp range: -25 to 70°C operational
  • High protection: IP20, IP66, IP67, IP69K
  • Screw terminal connection for secure fit
  • NEMA ratings: 1, 12, 13, 3R, 4, 4x
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
Sub-Function 4-Position
Actuating Direction Not Applicable
Bezel Material Plastic
Product Type Joystick Operator Switch With Latching
Brand ABB
Actuator Type Pilot Light Head
Connecting Capacity 1 x 0.75-2.5 sq-mm Flexible, 2 x 0.75-2.5 sq-mm Flexible, 1 x 0.75-2.5 sq-mm Solid, 2 x 0.75-2.5 sq-mm Solid
Connection Type Screw Clamp
Degree of Pollution IP3
Degree of Protection IP20, IP66, IP67, IP69K
Function Maintained
Illumination Illuminated
Lamp Colour Yellow
Lamp Type Integrated LED
Mode of Operation Maintained
NEMA Rating NEMA 1, 12, 13, 3R, 4, 4x
Operational Temperature -25 to 70 deg C
Rated Voltage 12 VDC
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Tightening Torque 0.9 N-m
Weight 0.018 kg
Wire Stripping Length 8 mm

Description

This joystick kit features a latching function and has 4 positions. It has 1 normally open (NO) and 1 normally closed (NC) maintained switch. The kit is part of a modular plastic range and has front IP66, IP67, and IP69K ratings for protection against dust and water.
