Product Code: MPJLA422

24 VAC/VDC, 50/60 Hz rated voltage and frequency
Wide temp range: -25 to 70°C operation
High protection: IP20, IP66, IP67, IP69K
Screw clamp connection for easy installation
Integrated yellow LED illumination

Specifications

Contacts	2NO+2NC
Sub-Function	4-Position
Actuating Direction	Not Applicable
Bezel Material	Plastic
Product Type	Joystick Operator Switch With Latching
Brand	ABB
Actuator Type	Pilot Light Head
Connecting Capacity	1 x 0.75-2.5 sq-mm Flexible, 2 x 0.75-2.5 sq-mm Flexible, 1 x 0.75-2.5 sq-mm Solid, 2 x 0.75-2.5 sq-mm Solid
Connection Type	Screw Clamp
Degree of Pollution	IP3
Degree of Protection	IP20, IP66, IP67, IP69K
Function	Maintained
Illumination	Illuminated
Lamp Colour	Yellow
Lamp Type	Integrated LED
Mode of Operation	Maintained
NEMA Rating	NEMA 1, 12, 13, 3R, 4, 4x
Operational Temperature	-25 to 70 deg C
Rated Frequency	50/60 Hz
Rated Voltage	24 VAC/VDC
Storage Temperature	-40 to 85 deg C
Terminal Type	Screw
Tightening Torque	0.9 N-m
Weight	0.018 kg
Wire Stripping Length	8 mm

Description

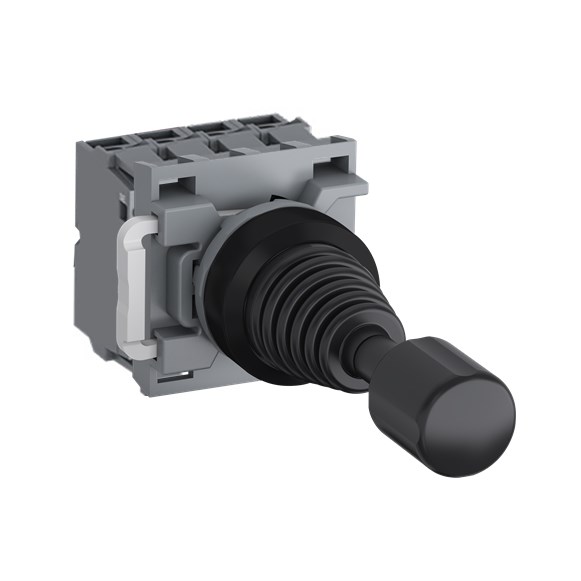

This joystick kit features a latching function and has 4 positions. It has 2 normally open (NO) and 2 normally closed (NC) maintained switches. The joystick is part of a modular plastic range and has front IP66, IP67, and IP69K ratings for protection against dust and water.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

ABB MPJLA422 Illuminated Joystick Operator Switch With Latching 24VAC/VDC 22mm dia Mounting Hole 2NO+2NC

Product Code: MPJLA422
