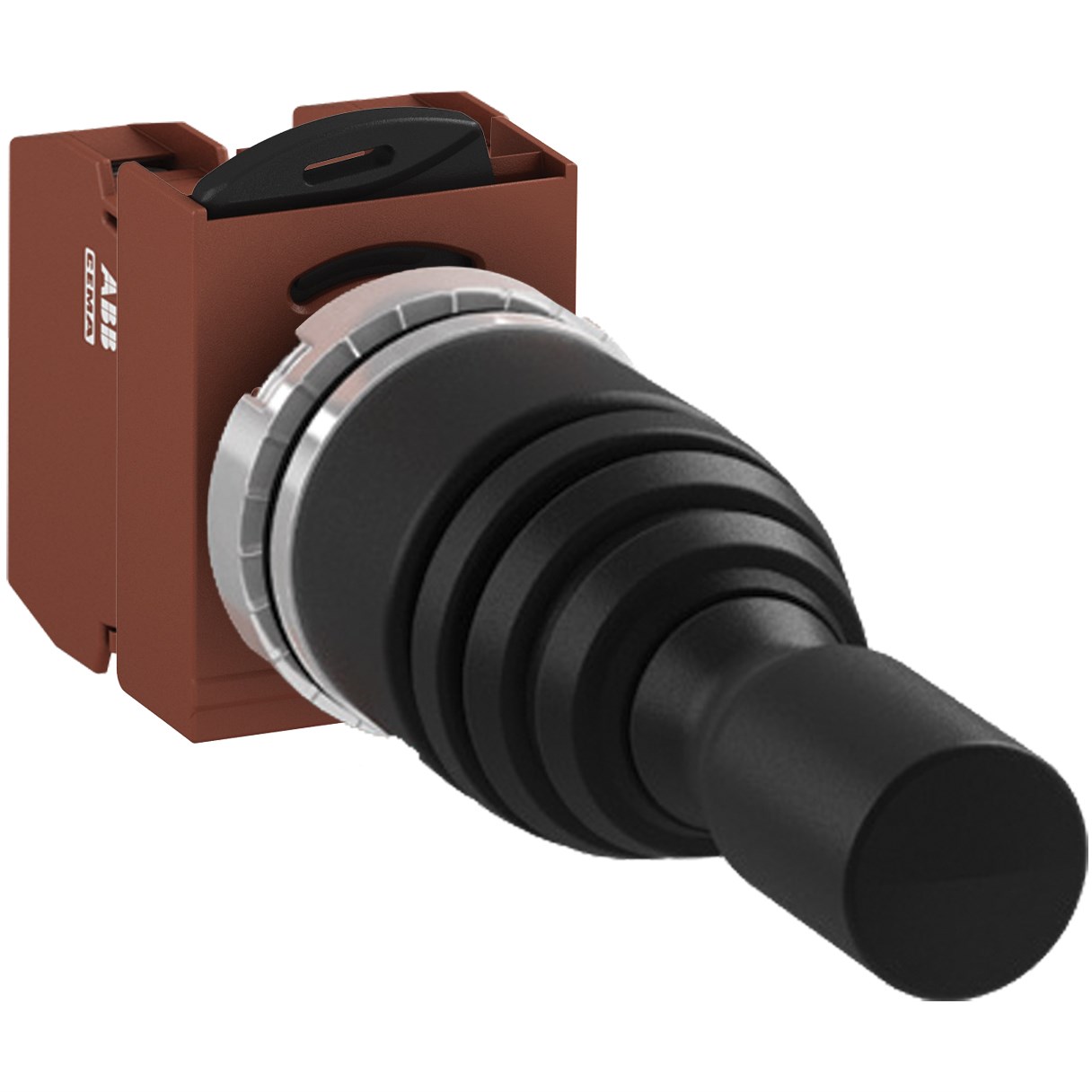

ABB MMJ2A11 Illuminated Joystick Operator Switch 24VAC/VDC 22mm dia Mounting Hole 1NO+1NC

Product Code: MMJ2A11

  • Operates at 24 VAC/VDC, 12.5 mA
  • Blue illumination with BA9S base
  • Wide temp range: -30 to 70°C
  • Long service life of 100,000 hrs
  • Complies with IEC/EN & UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Joystick Operator Switch
Brand ABB
Illumination Illuminated
Lamp Base BA9S
Lamp Colour Blue
Operational Temperature -30 to 70 deg C
Rated Current 12.5 mA
Rated Voltage 24 VAC/VDC
Service Life 100000 hrs
Standards and Approvals CAN/CSA C22.2 #14, IEC/EN 60947-1, IEC/EN 60947-5-1, UL 508
Storage Temperature -40 to 70 deg C
Weight 0.002 kg
