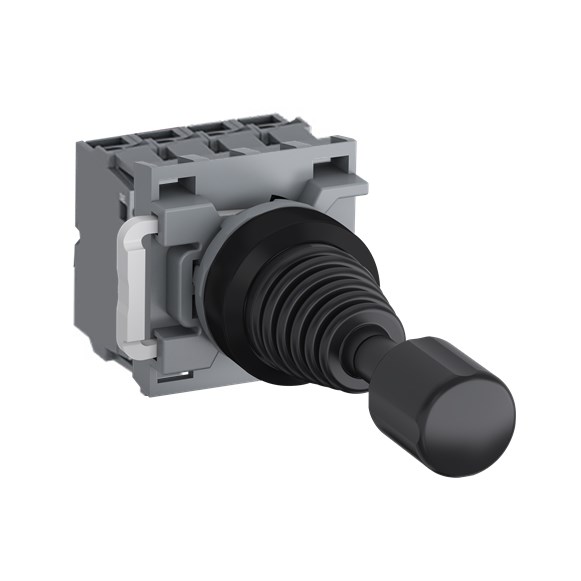

ABB MPJO413 Illuminated Joystick Operator Switch 380-415VAC 22mm dia Mounting Hole 1NO+3NC

Product Code: MPJO413

  • Rated for 380-415 VAC, 50/60 Hz
  • Illuminated with integrated red LED
  • Wide temp range: -25 to 70°C operation
  • High protection: IP20, IP66, IP67, IP69K
  • Screw clamp connection for secure fit
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO+3NC
No. of Positions 4
Sub-Function 4-Position
Actuating Direction Not Applicable
Bezel Material Plastic
Product Type Joystick Operator Switch
Brand ABB
Actuator Type Pilot Light Head
Connecting Capacity 1 x 0.75-2.5 sq-mm Flexible, 2 x 0.75-2.5 sq-mm Flexible, 1 x 0.75-2.5 sq-mm Solid, 2 x 0.75-2.5 sq-mm Solid
Connection Type Screw Clamp
Degree of Pollution IP3
Degree of Protection IP20, IP66, IP67, IP69K
Function Momentary
Illumination Illuminated
Lamp Colour Red
Lamp Type Integrated LED
Mode of Operation Momentary
NEMA Rating NEMA 1, 12, 13, 3R, 4, 4x
Operational Temperature -25 to 70 deg C
Rated Frequency 50/60 Hz
Rated Voltage 380-415 VAC
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Tightening Torque 0.9 N-m
Weight 0.018 kg
Wire Stripping Length 8 mm
