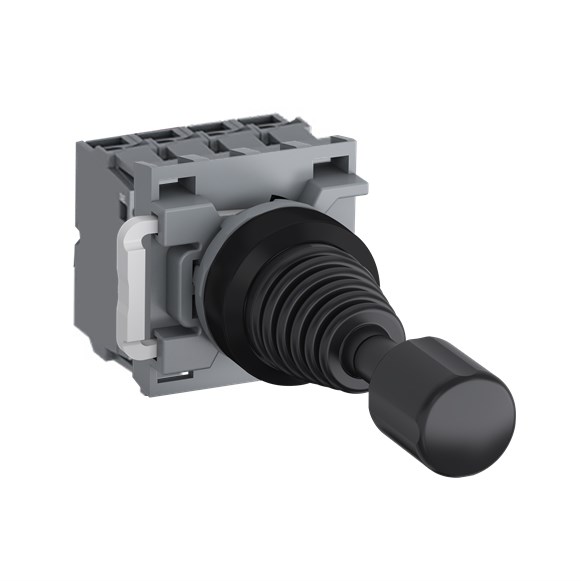

ABB MPJO422 Illuminated Joystick Operator Switch Without Latching 230VAC 22mm dia Mounting Hole 2NO+2NC

Product Code: MPJO422

  • Illuminated selector switch with green LED
  • Rated voltage of 230 VAC, 50/60 Hz
  • Wide temp range: -25 to 70°C operation
  • High protection: IP20, IP66, IP67, IP69K
  • Screw clamp connection for secure fit
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NO+2NC
Sub-Function 4-Position
Actuating Direction Not Applicable
Bezel Material Plastic
Product Type Joystick Operator Switch Without Latching
Brand ABB
Actuator Type Pilot Light Head
Connecting Capacity 1 x 0.75-2.5 sq-mm Flexible, 2 x 0.75-2.5 sq-mm Flexible, 1 x 0.75-2.5 sq-mm Solid, 2 x 0.75-2.5 sq-mm Solid
Connection Type Screw Clamp
Degree of Pollution IP3
Degree of Protection IP20, IP66, IP67, IP69K
Function Momentary
Illumination Illuminated
Lamp Colour Green
Lamp Type Integrated LED
Mode of Operation Momentary
NEMA Rating NEMA 1, 12, 13, 3R, 4, 4x
Operational Temperature -25 to 70 deg C
Rated Frequency 50/60 Hz
Rated Voltage 230 VAC
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Tightening Torque 0.9 N-m
Weight 0.018 kg
Wire Stripping Length 8 mm

Description

This joystick kit is designed without a latching function and has 4 positions. It features 2 normally open (NO) and 2 normally closed (NC) momentary switches. The kit is part of a modular plastic range and has front IP66, IP67, and IP69K ratings for protection against dust and water.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
