Specifications

Contacts	2NO
No. of Positions	4
Sub-Function	4-Position
Actuating Direction	Not Applicable
Bezel Material	Plastic

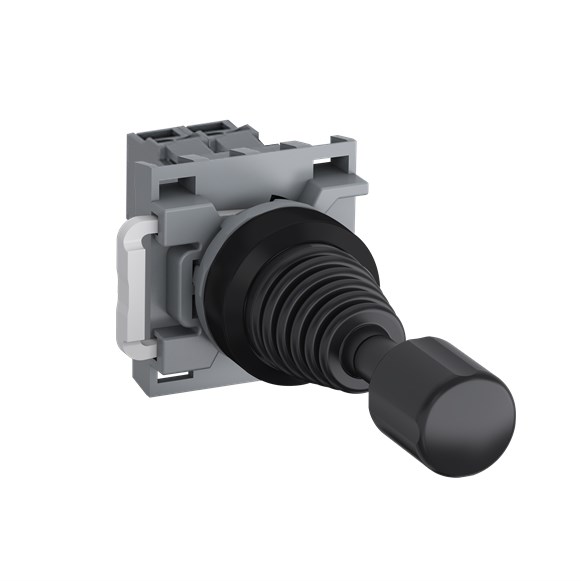

Product Type	Joystick Operator Switch
Brand	ABB
Actuator Type	Pilot Light Head
Connecting Capacity	1 x 0.75-2.5 sq-mm Flexible, 2 x 0.75-2.5 sq-mm Flexible, 1 x 0.75-2.5 sq-mm Solid, 2 x 0.75-2.5 sq-mm Solid
Connection Type	Screw Clamp
Degree of Pollution	IP3
Degree of Protection	IP20, IP66, IP67, IP69K
Function	Momentary
Illumination	Illuminated
Lamp Colour	Yellow
Lamp Type	Integrated LED
Mode of Operation	Momentary
NEMA Rating	NEMA 1, 12, 13, 3R, 4, 4x
Operational Temperature	-25 to 70 deg C
Rated Frequency	50/60 Hz
Rated Voltage	380-415 VAC
Storage Temperature	-40 to 85 deg C
Terminal Type	Screw
Tightening Torque	0.9 N-m
Weight	0.018 kg
Wire Stripping Length	8 mm
