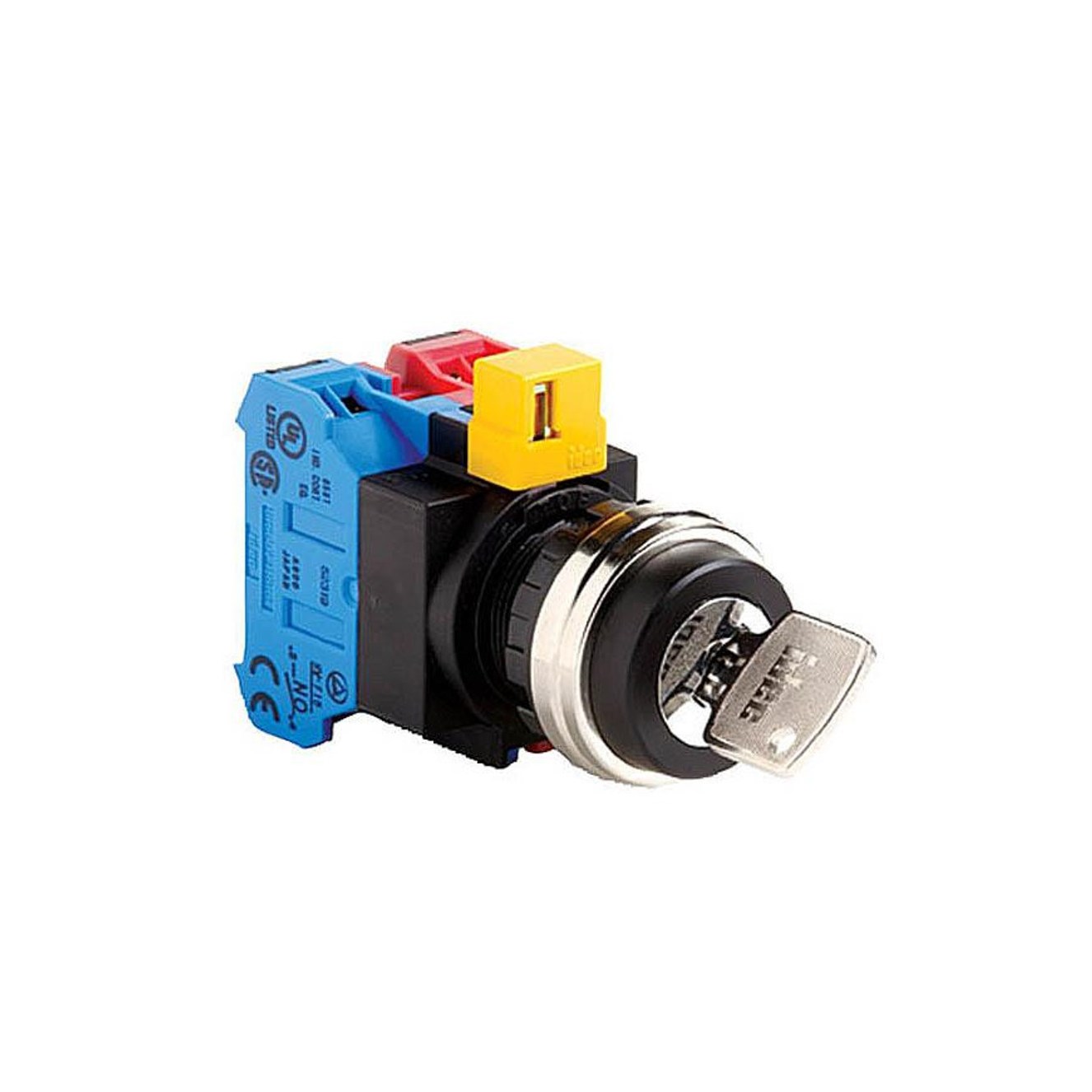

IDEC HW4K-2BF11-1H Selector Switch 2Position 1NO+1NC Maintained Knob Key Metal Screw Terminal

Product Code: HW4K-2BF11-1H

  • Key-operated knob switch for secure control
  • Rated current of 10 A, suitable for various applications
  • IP20/IP65 protection for dust and water resistance
  • Compatible with 22 mm mounting holes
  • Meets CE, CSA, UL standards for safety compliance
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Normally-open Contacts 1
No. of Normally-closed Contacts 1
Terminal Shape Screw Terminal
Product Type Selector Switch
Brand IDEC
Series HW
Actuator Type Key
Bezel Material Metal
Contact Configuration 1NO+1NC
Degree of Protection IP20, IP65
Function Maintained
Insulation Resistance 50 MOhm
Mounting Hole Diameter 22 mm
Number of Positions 2
Operational Temperature -25 to 60 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 600 V
Standards and Approvals CE, CSA, UL
Switch Type Knob
Terminal Type Screw

Description

The IDEC HW4K-2BF11-1H is a robust key selector switch designed for secure and controlled operations. It features a metal bezel for durability and a 2-position maintained functionality, ensuring stable performance. The switch includes one Normally Open (NO) and one Normally Closed (NC) contact for versatile application use. Additionally, it is designed with the convenience of a key handle that is removable in the left position, enhancing security measures where needed. This switch is ideal for industrial settings requiring reliable switching with added security control.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
