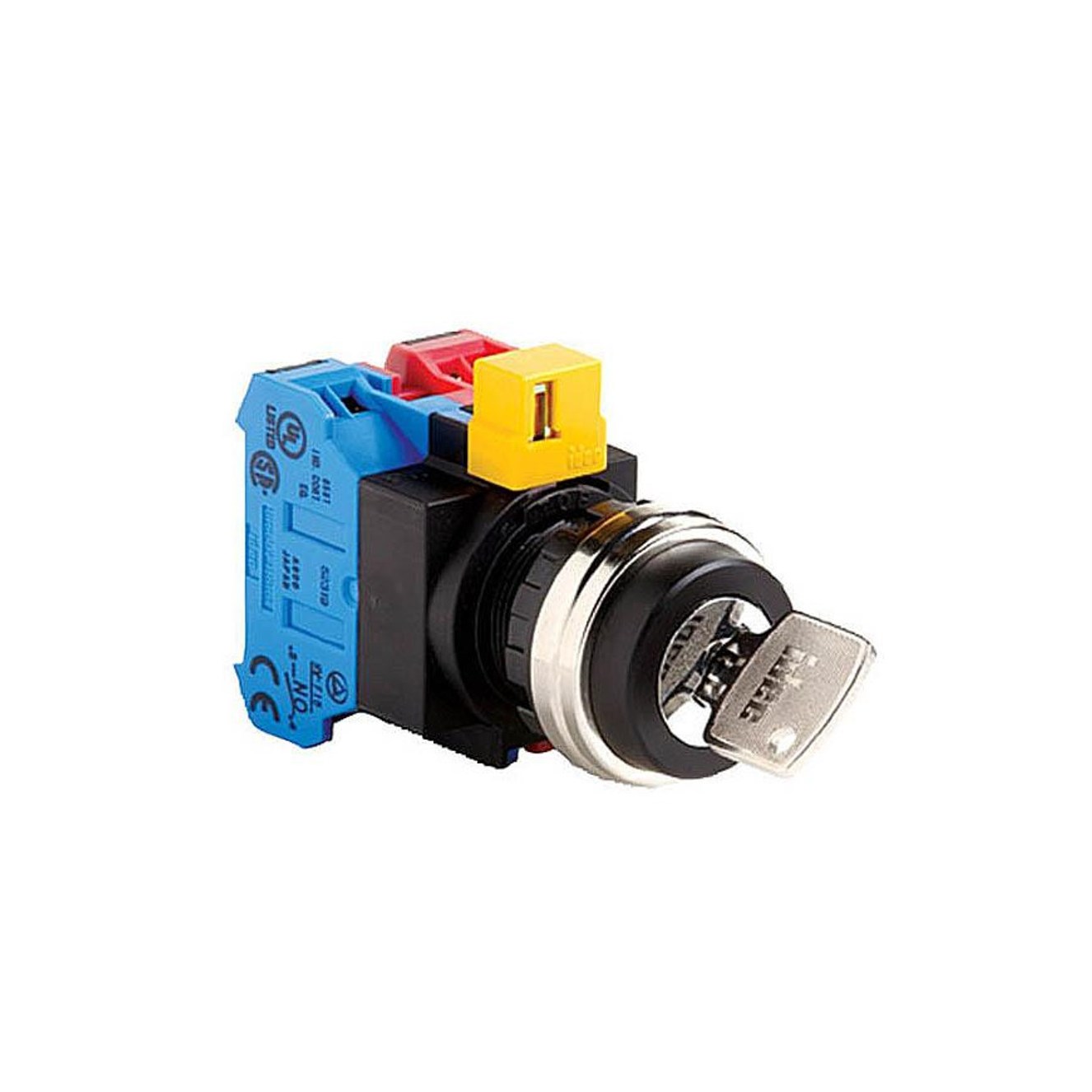

IDEC HW4K-2BF11-3H Selector Switch 2Position 1NO+1NC Maintained Knob Key Metal Screw Terminal

Product Code: HW4K-2BF11-3H

  • 10A rated current for reliable performance
  • Operates at -25 to 60°C for versatile use
  • IP20/IP65 protection against dust and water
  • CE, CSA, UL approved ensuring quality standards
  • 22mm mounting hole fits standard panels
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Normally-open Contacts 1
No. of Normally-closed Contacts 1
Terminal Shape Screw Terminal
Product Type Selector Switch
Brand IDEC
Series HW
Actuator Type Key
Bezel Material Metal
Contact Configuration 1NO+1NC
Degree of Protection IP20, IP65
Function Maintained
Insulation Resistance 50 MOhm
Mounting Hole Diameter 22 mm
Number of Positions 2
Operational Temperature -25 to 60 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 600 V
Standards and Approvals CE, CSA, UL
Switch Type Knob
Terminal Type Screw

Description

The IDEC HW4K-2BF11-3H is a robust key selector switch featuring a metal bezel and a 2-position maintained operation. It includes 1 Normally Open (NO) and 1 Normally Closed (NC) contact for versatile control. The key can be removed in the left position, ensuring secure access and operation. This switch is designed for reliable performance in industrial environments.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
