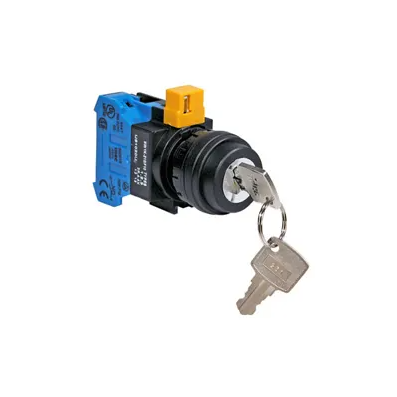

IDEC HW1K-21BF10 Selector Switch 2Position 1NO Knob Key Plastic Screw Terminal

Product Code: HW1K-21BF10

  • Selector switch with key actuator
  • Rated current of 10 A
  • IP20/IP65 protection rating
  • Operates from -25 to 60°C
  • CE, CSA, UL approved
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Normally-open Contacts 1
Terminal Shape Screw terminal
Product Type Selector Switch
Brand IDEC
Series HW
Actuator Type Key
Bezel Material Plastic
Contact Configuration 1NO
Degree of Protection IP20, IP65
Insulation Resistance 50 MOhm
Mounting Hole Diameter 22 mm
Number of Positions 2
Operational Temperature -25 to 60 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 600 V
Standards and Approvals CE, CSA, UL
Switch Type Knob
Terminal Type Screw

Description

The IDEC HW1K-21BF10 is a robust key switch featuring a 2-position interface with a spring return from the right and the capability for key removal in the left position. It includes one normally open (N/O) contact, ensuring reliable circuit control. The switch is designed with a durable plastic bezel and an ergonomic key handle for ease of operation. This component is ideal for applications that require secure switching with limited access.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
