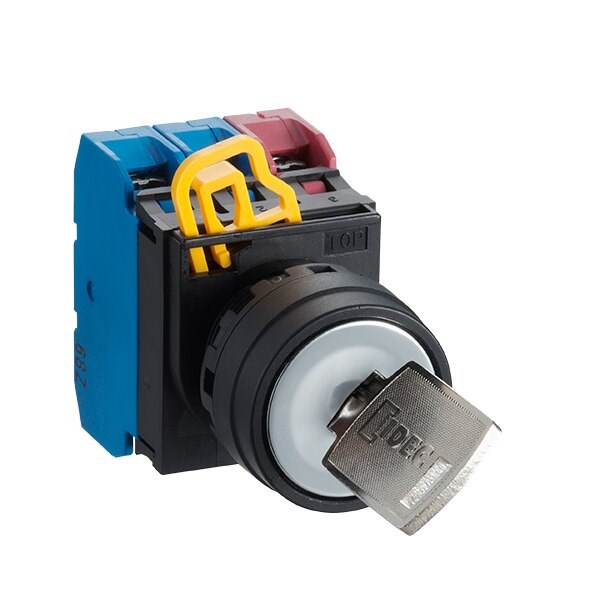

IDEC YW1K-2CE11 Selector Switch 2Position 1NO+1NC Right Key Round Plastic M3.5 Screw Terminal 30mm W 41.4mm H

Product Code: YW1K-2CE11

  • Rated current of 10 A for reliable performance
  • Operates at 50/60 Hz frequency
  • Compact dimensions: 30mm width, 41.4mm height
  • IP20/IP65 protection for versatile use
  • Meets CSA, IEC, UL standards for safety
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Selector Switch
Brand IDEC
Series YW
Actuator Type Key
Bezel Material Plastic
Bezel Shape Round
Contact Configuration 1NO+1NC
Degree of Protection IP20, IP65
Depth 69.8 mm
Height 41.4 mm
Insulation Resistance 100 MOhm
Mounting Hole Diameter 22 mm
Number of Positions 2
Operation Position Right
Operational Temperature -20 to 55 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Standards and Approvals CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type M3.5 Screw
Tightening Torque 1 N-m
Width 30 mm

Description

The IDEC YW1K-2CE11 is a 2-position maintained key selector switch designed for efficient use of space with its slim 10mm contact blocks. This compact and lightweight switch features a durable metal bezel and offers the convenience of a removable operator. The unibody design integrates pilot lights and key selector switches for a cohesive look. Additionally, the separate contact block simplifies installation and maintenance procedures.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
