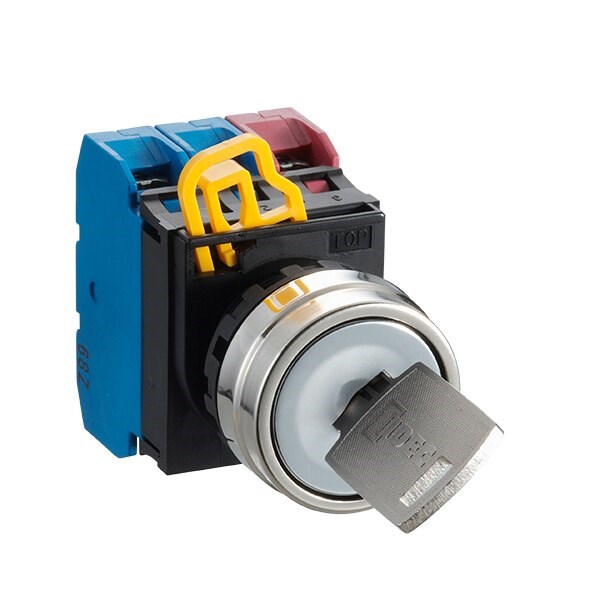

IDEC YW4K-3AE20 Selector Switch 3Position 2NO Left Right Key Round Metal M3.5 Screw Terminal 30mm W 41.4mm H

Product Code: YW4K-3AE20

  • Key selector switch with 2NO contact config
  • Rated for 10 A at 50/60 Hz frequency
  • Operates in -20 to 55°C temperature range
  • IP20/IP65 protection for reliable durability
  • Fits standard 22 mm mounting hole
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Normally-open Contacts 2
Product Type Selector Switch
Brand IDEC
Series YW
Actuator Type Key
Bezel Material Metal
Bezel Shape Round
Contact Configuration 2NO
Degree of Protection IP20, IP65
Depth 69.8 mm
Height 41.4 mm
Insulation Resistance 100 MOhm
Mounting Hole Diameter 22 mm
Number of Positions 3
Operation Position Left, Right
Operational Temperature -20 to 55 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Standards and Approvals CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type M3.5 Screw
Tightening Torque 1 N-m
Width 30 mm

Description

The IDEC YW4K-3AE20 is a 3-position maintained key selector switch designed for efficient use of space with its compact and lightweight structure. It features space-saving, 10mm thick contact blocks and a removable operator for ease of use. The separate contact block design simplifies installation and removal processes. This 22mm switch is ideal for applications where space is at a premium and reliability is required.
