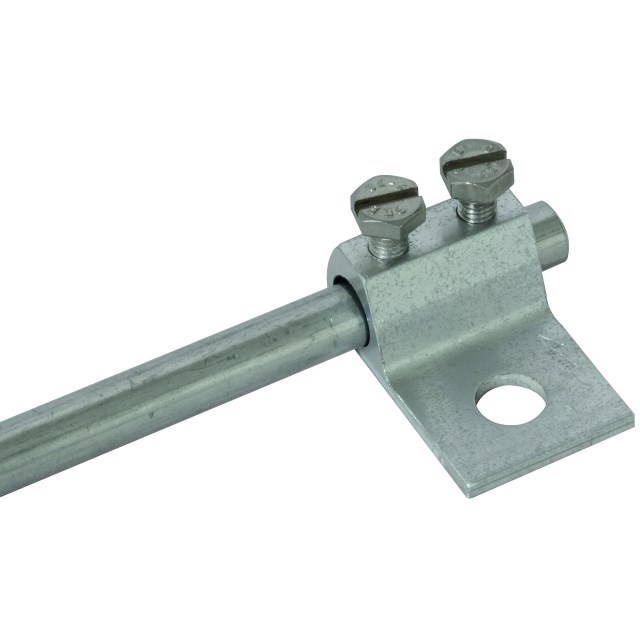

DEHN 347205 Clamping Shoe 7-10mm M6 x 12mm Screw Aluminium

Product Code: 347205

  • M6 x 12 mm screw connection
  • Aluminium construction
  • Clamping range: 7-10 mm
  • Handles lightning current up to 100 kA
  • Complies with EN 62561-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 3W x 4H x 3D
Reference No. 347205
Suitable For Diameter round conductor 7mm
Weight (kg) 0.025
Fixing Hole Ø (mm) 10.5
Surface Protection Untreated
Rod Diameter (mm) 7 - 10
Product Type Clamping Shoe
Brand DEHN
Clamping Range 7-10 mm
Connection Type M6 x 12 mm Screw
Connector Type Clamping shoe
Depth 3 mm
Finish Untreated
Height 4 mm
Lid Screw Type Hexagon screw
Lightning Current Carrying Capability 100 kA
Material Aluminium
Standards and Approvals EN 62561-1
Width 3 mm
