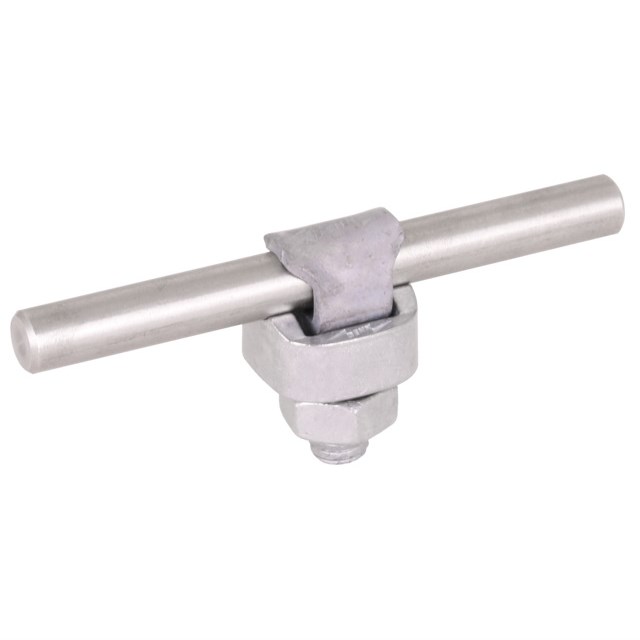

DEHN 301010 KS Connector W/Spring Washer M10 Screw 3mm W 4mm H Steel

Product Code: 301010

  • M10 screw connection for secure fit
  • Clamping range: 7-10 mm
  • Handles lightning currents up to 100 kA
  • Complies with EN 62561-1 standards
  • Durable steel construction
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 3W x 4H x 3D
Suitable For Earthing
Weight (kg) 0.06
Conductor Diameter (mm) 7
Holder Material Steel galvanised
Lightning current load-bearing capacity (10/350µs) 100
Type Equipotential Bonding
Clamping Range (mm) 7 - 10
Product Type KS Connector With Spring Washer
Brand DEHN
Clamping Range 7-10 mm
Connection Type M10 Screw
Connector Type Connector
Depth 3 mm
Finish Untreated
Height 4 mm
Lid Screw Type Clamp screw
Lightning Current Carrying Capability 100 kA
Material Steel
Standards and Approvals EN 62561-1
Thread Size M10
Weight 61 g
Width 3 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
