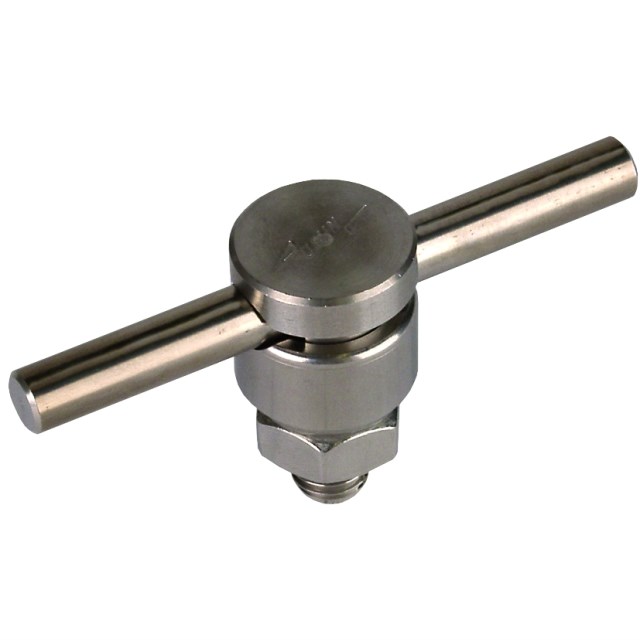

DEHN 301009 KS Connector M10 Screw 2mm W 4mm H Stainless Steel

Product Code: 301009

  • Compatible with M10 screw connections
  • Stainless steel for durability
  • Clamping range of 6-10 mm
  • Handles lightning currents up to 100 kA
  • Complies with EN 62561-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 2W x 4H x 2D
Weight (kg) 0.06
Clamping Range (mm) 6 - 10
Surface Protection Untreated
Conductor Diameter (mm) 6
Holder Material Stainless steel 304 (V2A)
Lightning current load-bearing capacity (10/350µs) 100/50
Product Type KS Connector
Brand DEHN
Clamping Range 6-10 mm
Connection Type M10 Screw
Connector Type Connector
Depth 2 mm
Finish Untreated
Height 4 mm
Lid Screw Type Clamp screw
Lightning Current Carrying Capability 50 kA, 100 kA
Material Stainless Steel
Standards and Approvals EN 62561-1
Thread Size M10
Weight 61 g
Width 2 mm
