Specifications

Power Loss (W)	Approximately 1.2
Rated Frequency (Hz)	50/60
Rated Voltage AC (V)	110 - 130
Tightening Torque (Nm)	0.9

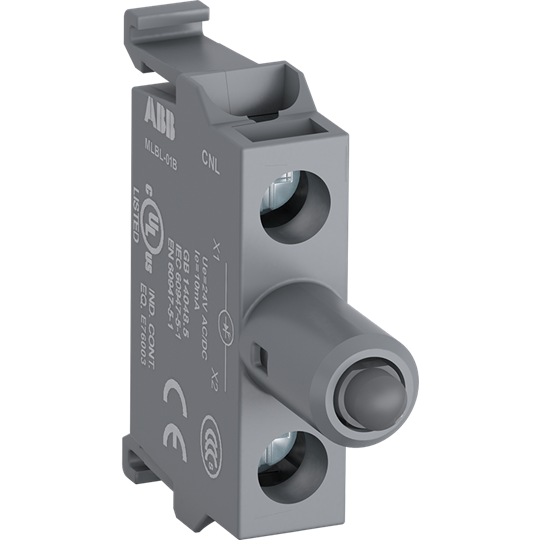

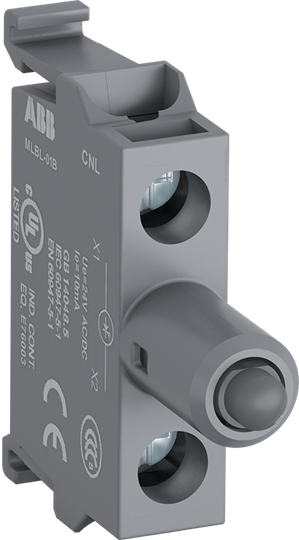

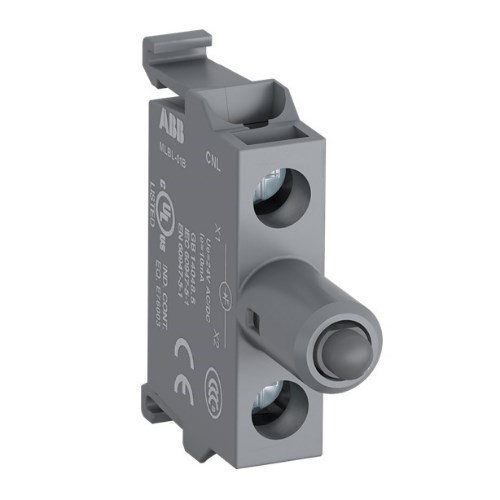

Product Type	LED Block
Brand	ABB
Series	RSS/RST
Ambient Temperature	0 to 80 deg C
Cable Cross Section	(1) 0.75 sq-mm
Colour	Silver
Degree of Protection	IP65
Front Ring Colour	Silver
Front Ring Material	Aluminium
Fully Insulated	Yes
Hole Diameter	39.5 mm
Installation Conditions	Arbitrarily
Lamp Type	Built-in LED
Mechanical Life	1 million Operations
Mounting Hole Diameter	22.3 mm
Mounting Type	Flange
Number of Positions	3
Operational Temperature	75 deg C
Sealing Type	Membrane, Lip Gaskets, Form Seals
Spacing	50 mm x 60 mm
Standards and Approvals	EN IEC 60204-1, EN IEC 60947-1, EN IEC 60947-5-1/-5-3/-5-5, EN IEC 62061
Switching Angle	90 deg
Terminal Type	Screw Terminals
Tightening Torque	0.6 N-m
Weight	100 g
