Specifications

Dimensions (mm)	10W x 44H x 42D
Operational Temperature Range (°C)	-25 to 70
Power Loss (W)	Approximately 0.2
Rated Frequency (Hz)	50/60
Rated Voltage DC (V)	12
Tightening Torque (Nm)	0.9
Suitable For	MCBH, MP, MPM, M2SS, M3SS Pilot Devices
Storage Temperature Range (°C)	-40 to 85

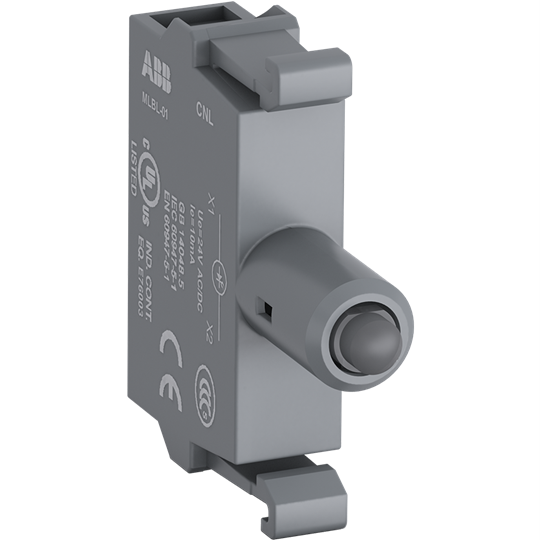

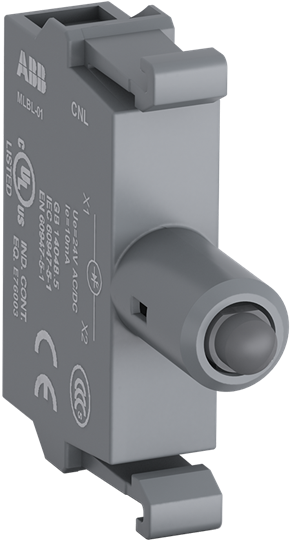

Product Type	LED Block
Brand	ABB
Degree of Protection	IP20
Depth	42 mm
Height	44 mm
Illumination	Illuminated
Lamp Type	Built-In LED
LED Colour	Green
Mounting Type	Front
Operational Temperature	-25 to 70 deg C
Power Loss	0.2 W
Rated Frequency	50/60 Hz
Rated Voltage	12 VDC
Storage Temperature	-40 to 85 deg C
Suitable For Use With	MCBH, MP, MPM, M2SS, M3SS Pilot Devices
Terminal Type	Screw
Tightening Torque	1 N-m
Width	10 mm
