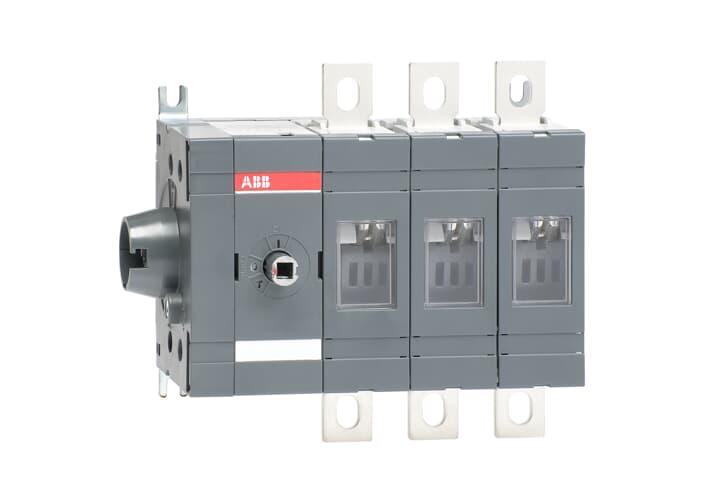

ABB OT160EVS03 SWITCH-DISCONNECTOR OT160EVS03

Product Code: OT160EVS03

3-pole, side operated, base mounted switch-diconnector, handle and shaft are not included, terminal bolt kit included

Technical Specifications

Impulse Withstand Voltage (kV/1.2┬ÁS) 12
Brand ABB
Conventional Free-Air Thermal Current - Ith (A) 200
Conventional Thermal Current - Ithe (A) 160
Degree of Protection - Handle IP65
Dimensions (mm) 181.5W x 150H x 82D
Icw (kA/1s) - Short-time Withstand Current Rating 8
Main Circuit Electrical Connection Bolt Connection
Maximum Operational Voltage AC (V) 1000
Mode of Operation Side Operated
Mounting Type Base Mount
No. of Poles 3
Operating Mechanism Mechanism at the End of the Switch 03 (Left Side)
Operational Current AC-22A @ 380-415V (A) 200
Operational Current AC-22A @ 500V (A) 200
Operational Current AC-22A @ 690V (A) 160
Operational Current AC-23A @ 380-415V (A) 160
Operational Current AC-23A @ 500V (A) 160
Operational Current AC-23A @ 690V (A) 160
Operational Power AC-23A @ 400-415V (kW) 88
Operational Power AC-23A @ 500V (kW) 112
Operational Power AC-23A @ 690V (kW) 144
Poles 3P
Pollution Degree 3
Position of Mechanism Mechanism at the End of Switch 03 (Left Side)
Position of Operation Side Operated
Power Loss (W) 3.2/Pole
Rated Impulse Withstand Voltage (kV) 12
Rated Insulation Voltage (V) 1000
Rated Operational Current AC-21A 415V (A) 200
Rated Operational Current AC-22A 380-415V (A) 200
Rated Operational Current AC-22A 500V (A) 200
Rated Operational Current AC-22A 690V (A) 160
Rated Operational Current AC-23A 380-415V (A) 160
Rated Operational Current AC-23A 500V (A) 160
Rated Operational Current AC-23A 690V (A) 160
Rated Operational Power AC-23A 380-415V (kW) 88
Rated Operational Power AC-23A 400-415 V (kW) 88
Rated Operational Power AC-23A 500V (kW) 112
Rated Operational Power AC-23A 690V (kW) 144
Rated Operational Voltage (V) 1000
Rated Short-Time Withstand Current - Icw (kA) 8
Rated Short-time Withstand Current - Icw (kA/1s) 8
Rated Uninterrupted Current - Iu (A) 160
Sizes (mm) 181.5W x 150H x 82D
Standards and Approvals IEC 60947-3
Terminal Type Lug terminals
Type Main Switch
Type of Mounting Base Mount
Voltage (V) 1000
