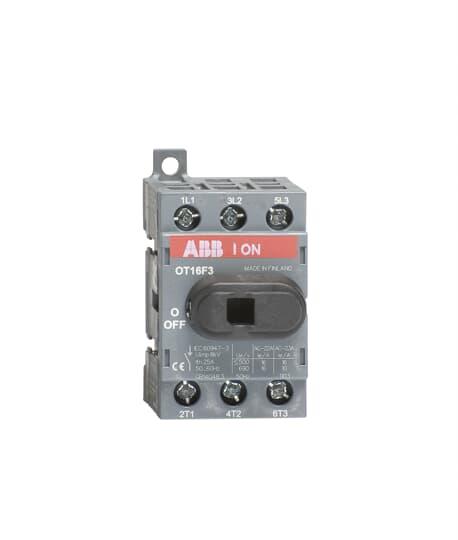

ABB OT16F3 SWITCH-DISCONNECTOR OT16F3

Product Code: OT16F3

3-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with protected clamp terminals, handle and shaft are not included

Technical Specifications

Brand ABB
Cable Cross Section (mm²) 0.75 - 10
Conventional Free-Air Thermal Current - Ith (A) 25
Conventional Thermal Current - Ithe (A) 25
Degree of Protection IP20
Dimensions (mm) 35W x 68H x 56D
Main Circuit Electrical Connection Screw Connection
Maximum Operational Voltage AC (V) 750
Mode of Operation Front Operated
Mounting Type Base Mount
NEMA Degree of Protection 1
No. of Poles 3
Operating Mechanism Mechanism on Top of the Switch
Pollution Degree 3
Power Loss (W) 0.3/Pole
Product Quantity 10
Rated Impulse Withstand Voltage (kV) 8
Rated Insulation Voltage (V) 750
Rated Operational Current AC-21A 415V (A) 16
Rated Operational Current AC-22A 380-415V (A) 16
Rated Operational Current AC-22A 500V (A) 16
Rated Operational Current AC-22A 690V (A) 16
Rated Operational Current AC-23A 380-415V (A) 16
Rated Operational Current AC-23A 500V (A) 16
Rated Operational Current AC-23A 690V (A) 16
Rated Operational Power AC-23A 380-415V (kW) 7.5
Rated Operational Power AC-23A 400-415 V (kW) 7.5
Rated Operational Power AC-23A 500V (kW) 7.5
Rated Operational Power AC-23A 690V (kW) 7.5
Rated Operational Voltage (V) 750
Rated Short-Time Withstand Current - Icw (kA) 0.5
Rated Short-time Withstand Current - Icw (kA/1s) 0.5
Rated Uninterrupted Current - Iu (A) 25
Standards and Approvals IEC 60947-3 / UL 508 / CSA C22.2 No. 14
Suitable For Distribution Board Installation
Terminal Type Screw Terminals
Type Main Switch
