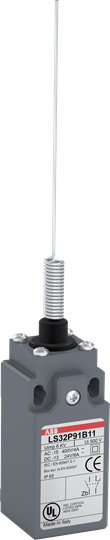

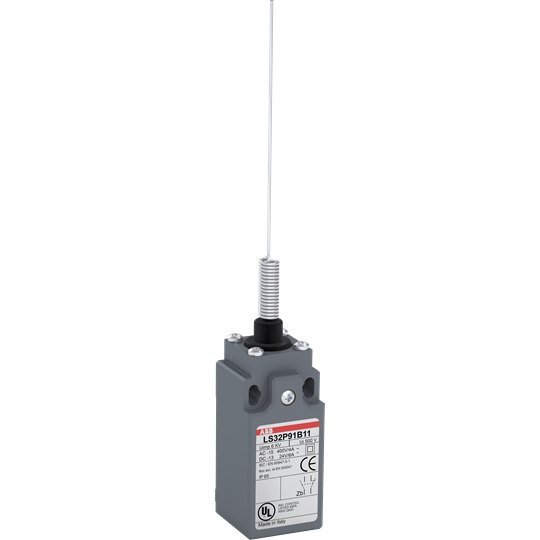

ABB LS32P91B11 Limit Switch Multidirectional Stainless Steel Spring W/Rigid End 1NO-1NC 30mm W Plastic

Product Code: LS32P91B11

  • Rated for multiple current levels up to 10A
  • Compact design with 30mm mounting
  • Durable plastic housing, IP65 protection
  • Operates in temperatures from -25 to 70°C
  • Stainless steel multidirectional actuator
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Limit Switch
Brand ABB
Actuator Material Stainless Steel
Actuator Type Multidirectional Spring With Rigid End
Contact Configuration 1NO+1NC
Degree of Protection IP65
Height 188 mm
Housing Material Plastic
Length 30 mm
Mechanical Durability >5000000 Operations
Mounting Type 30 mm EN 50047
Operational Temperature -25 to 70 deg C
Rated Current 3.1 A, 10 A, 5.5 A, 3 A
Switching Type Snap Action
Weight 0.068 kg
Width 30 mm
