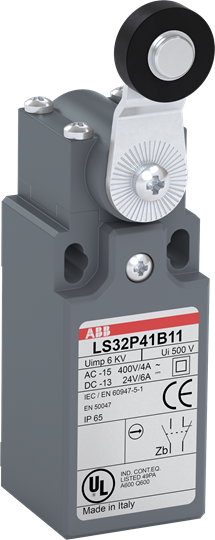

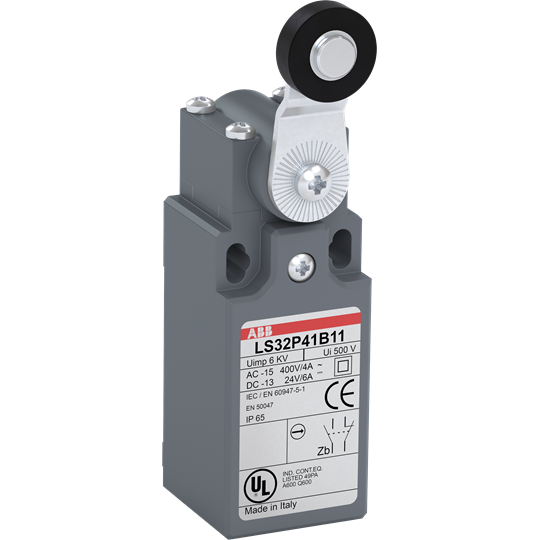

ABB LS32P41B11 Limit Switch 18mm Plastic Roller Lever 1NO-1NC 30mm W Plastic

Product Code: LS32P41B11

Rated current options: 3.1 A, 10 A, 5.5 A, 3 A
Compact size: 45x30x106 mm
Durable plastic housing with IP65 protection
Operates in temperatures from -25 to 70°C
Long-lasting with 10 million mechanical operations

Specifications

Product Type	Limit Switch
Brand	ABB
Actuator Material	Plastic
Actuator Type	18 mm Adjustable Roller Lever
Contact Configuration	1NO+1NC
Degree of Protection	IP65
Height	106 mm
Housing Material	Plastic
Length	45 mm
Mechanical Durability	10000000 Operations
Mounting Type	30 mm EN 50047
Operational Temperature	-25 to 70 deg C
Rated Current	3.1 A, 10 A, 5.5 A, 3 A
Switching Type	Snap Action
Weight	0.083 kg
Width	30 mm

Documents

IPD Product Catalogue

IPD Product Catalogue V17
