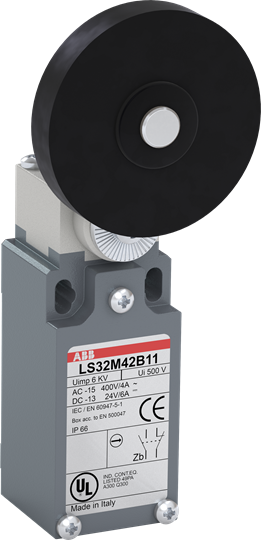

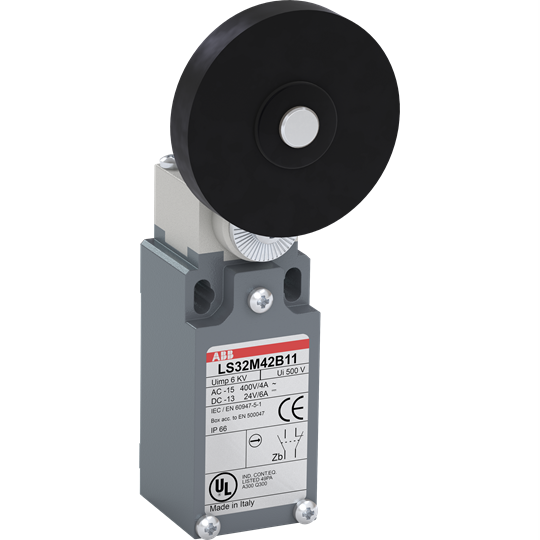

ABB LS32M42B11 Limit Switch 50mm Plastic Roller Lever 1NO-1NC 50mm W Metal

Product Code: LS32M42B11

Rated current options: 3.1 A, 10 A, 5.5 A, 3 A
Durable metal housing with IP66 protection
Operates from -25 to 70°C
Complies with CE and UL standards
Snap action switch with roller lever actuator

Specifications

Product Type	Limit Switch
Brand	ABB
Actuator Material	Plastic
Actuator Type	50 mm Roller Lever
Contact Configuration	1NO+1NC
Degree of Protection	IP66
Height	124 mm
Housing Material	Metal
Length	50 mm
Mechanical Durability	10000000 Operations
Mounting Type	30 mm EN 50047
Operational Temperature	-25 to 70 deg C
Rated Current	3.1 A, 10 A, 5.5 A, 3 A
Standards and Approvals	CE,UL
Switching Type	Snap Action
Weight	0.193 kg
Width	50 mm

Documents

IPD Product Catalogue

IPD Product Catalogue V17
