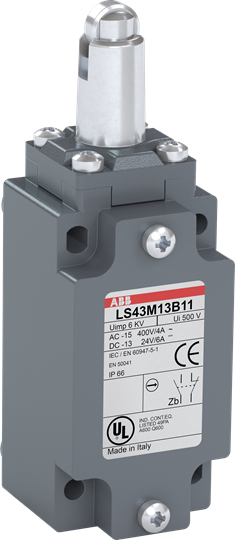

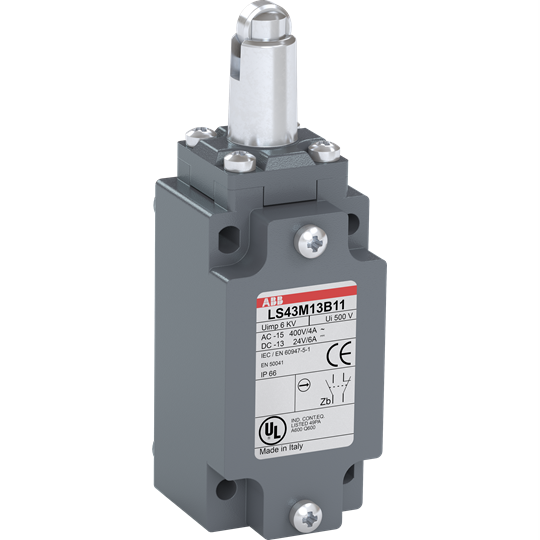

ABB LS43M13B11 Limit Switch Stainless Steel Roller Plunger 1NO-1NC 40mm W Metal

Product Code: LS43M13B11

Rated for multiple currents: 3.1 A, 10 A, 5.5 A, 3 A
Robust metal housing with IP66 protection
Operates in temperatures from -25 to 70°C
CE and UL certified for quality assurance
Durable roller plunger actuator made of stainless steel

Specifications

Product Type	Limit Switch
Brand	ABB
Actuator Material	Stainless Steel
Actuator Type	Roller Plunger
Contact Configuration	1NO+1NC
Degree of Protection	IP66
Height	120 mm
Housing Material	Metal
Length	44 mm
Mechanical Durability	25000000 Operations
Mounting Type	40 mm EN 50041
Operational Temperature	-25 to 70 deg C
Rated Current	3.1 A, 10 A, 5.5 A, 3 A
Standards and Approvals	CE,UL
Switching Type	Snap Action
Weight	0.229 kg
Width	40 mm

Documents

IPD Product Catalogue

IPD Product Catalogue V17
