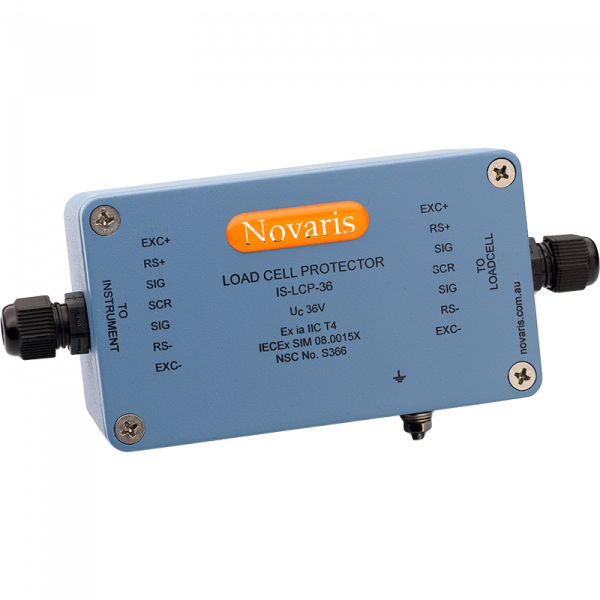

Novaris IS-LCP-36 Load Cell Protector 0.25kA 36VDC 116mm W 56mm D 65mm H Aluminium IP65

Product Code: IS-LCP-36

Surge protection for 36 VDC systems
Durable IP65 aluminium housing
Operates in -40 to 85°C range
Protects in transverse & common modes
Compact size: 116x65x56 mm

Specifications

Product Type	Load Cell Protector
Brand	NOVARIS
Degree of Protection	IP65
Depth	56 mm
Height	65 mm
Humidity	5-95%
Material	Aluminium
Modes of Protection	Transverse and Common Modes
Number of Lines	4, 6
Operational Temperature	-40 to 85 deg C
Rated Current	0.25 kA
Rated Voltage	36 VDC
Tightening Torque	0.5 N-m
Voltage Protection Level	<70 V
Weight	600 g
Width	116 mm
