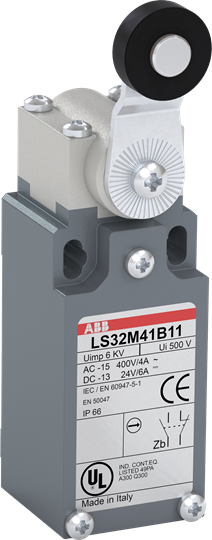

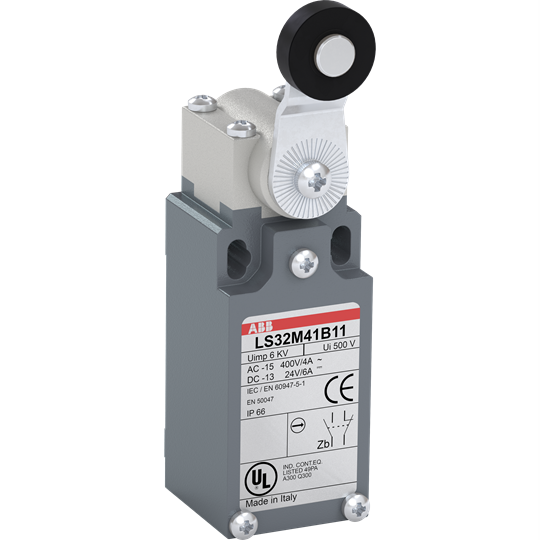

ABB LS32M41B11 Limit Switch 18mm Plastic Roller Lever 1NO-1NC 30mm W Metal

Product Code: LS32M41B11

Metal housing, IP66 protection
Operates from -25 to 70°C
CE and UL approved
Snap action switch with 1NO+1NC contacts
Durable with 10 million operations

Specifications

Product Type	Limit Switch
Brand	ABB
Actuator Material	Plastic
Actuator Type	18 mm Adjustable Roller Lever
Contact Configuration	1NO+1NC
Degree of Protection	IP66
Height	108 mm
Housing Material	Metal
Length	44 mm
Mechanical Durability	10000000 Operations
Mounting Type	30 mm EN 50047
Operational Temperature	-25 to 70 deg C
Rated Current	3.1 A, 10 A, 5.5 A, 3 A
Standards and Approvals	CE,UL
Switching Type	Snap Action
Weight	0.178 kg
Width	30 mm

Documents

IPD Product Catalogue

IPD Product Catalogue V17
