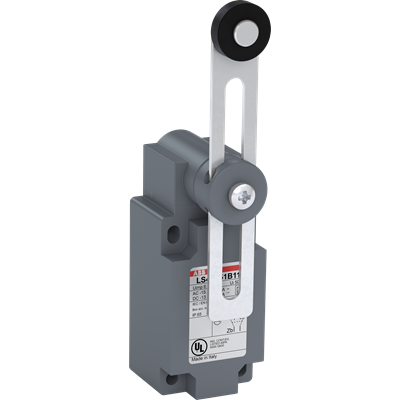

ABB LS40P51B11 Limit Switch 22mm Dia Adjustable Polyamide Roller Lever 41mm W

Product Code: LS40P51B11

Rated current options: 3.1A, 10A, 5.5A, 3A
IP65 protection for dust and water resistance
Operates in -25 to 70°C temperature range
Snap action switching with adjustable roller lever
High durability: 10 million operations

Specifications

Product Type	Limit Switch
Brand	ABB
Actuating Speed	1.5 m/s
Actuator Type	22 mm Adjustable Roller Lever
Degree of Protection	IP65
Height	135 mm
Length	62 mm
Mechanical Durability	10000000 Operations
Number of Auxiliary Contacts	1
Operational Temperature	-25 to 70 deg C
Rated Current	3.1 A, 10 A, 5.5 A, 3 A
Rated Frequency	50/60 Hz
Switching Type	Snap Action
Terminal Type	Screw
Weight	0.164 kg
Width	41 mm
