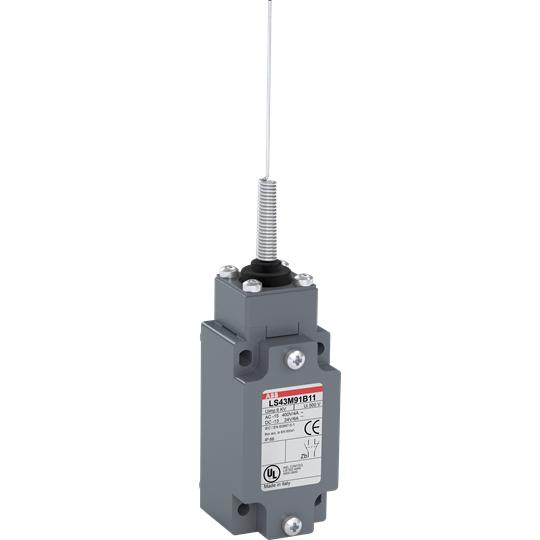

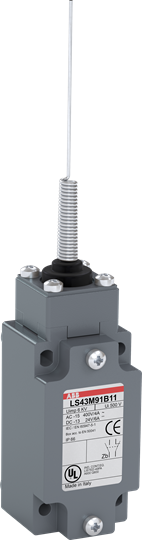

ABB LS43M91B11 Limit Switch Multidirectional Stainless Steel Spring W/Rigid End 1NO-1NC 40mm W Metal

Product Code: LS43M91B11

  • Metal housing with IP66 protection
  • Operates in -25 to 70°C temperature range
  • Multidirectional spring actuator, stainless steel
  • Snap action switch with 1NO+1NC contacts
  • High durability: 10 million operations
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Limit Switch
Brand ABB
Actuator Material Stainless Steel
Actuator Type Multidirectional Spring With Rigid End
Contact Configuration 1NO+1NC
Degree of Protection IP66
Height 199 mm
Housing Material Metal
Length 44 mm
Mechanical Durability 10000000 Operations
Mounting Type 40 mm EN 50041
Operational Temperature -25 to 70 deg C
Rated Current 3.1 A, 10 A, 5.5 A, 3 A
Switching Type Snap Action
Weight 0.209 kg
Width 40 mm
