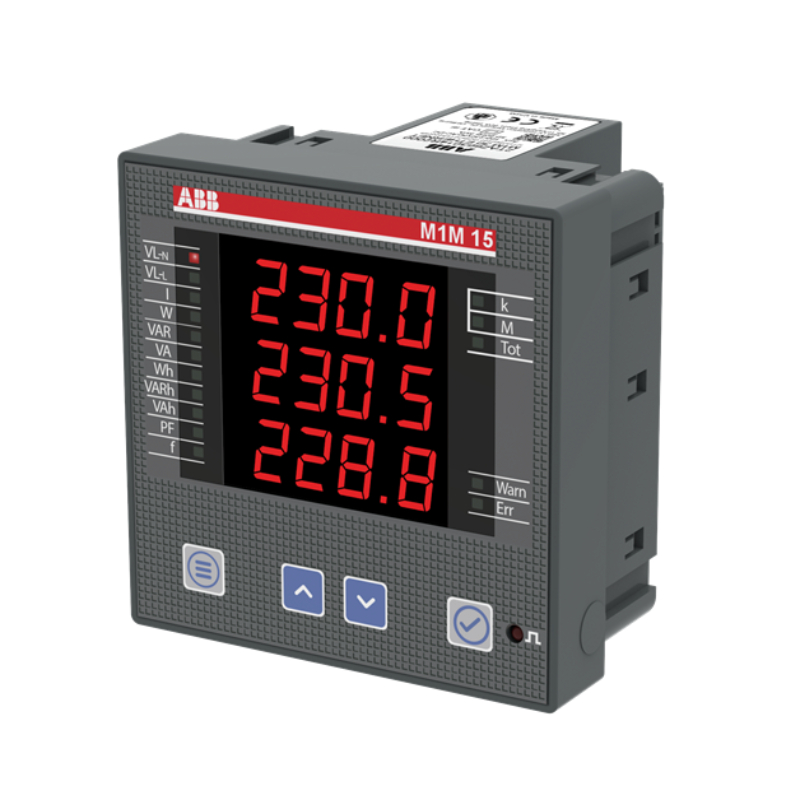

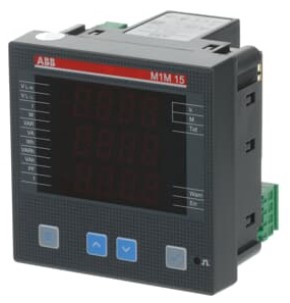

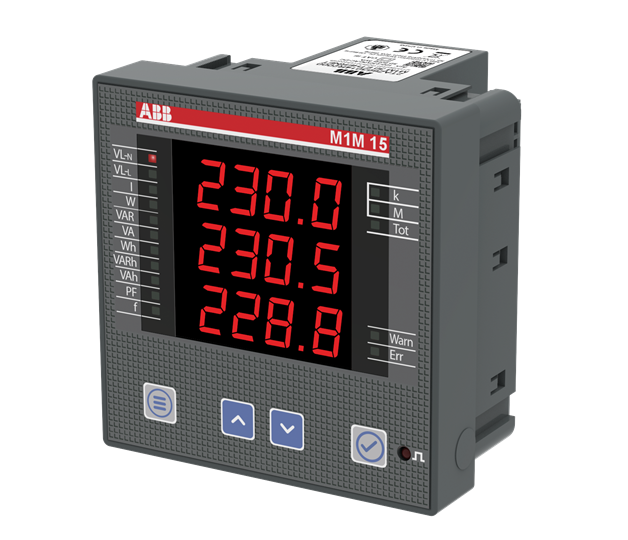

ABB M1M 15 MULTIFUNCTION METER 100-230VAC/DC, LED DISPLAY

Product Code: M1M 15

The Multifunction meter is designed for basic applications and offers reliable measurement of electrical parameters. It has a wide LED display that allows for easy reading of measurement data for all 3 phases. The meter can measure voltage, current, frequency, power, and energy. It operates on a range of 100-230 V AC/DC and has an active energy class 1 accuracy. The removable terminals are vertically disposed for convenience. The meter has dimensions of 96mm (W) x 96mm (H) x 85mm (D) and a degree of protection rating of IP51 (Front)/IP20 (Terminals).

Technical Specifications

Brand ABB
Accuracy Active Energy ± 1%
Communication Modbus RTU
Degree of Protection IP51
Dimensions (mm) 96H x 96W x 77D
Display Screen Type LED Display
Meter Type Digital
Mounting Type Front Panel
Operational Temperature Range (°C) -5 to +55
