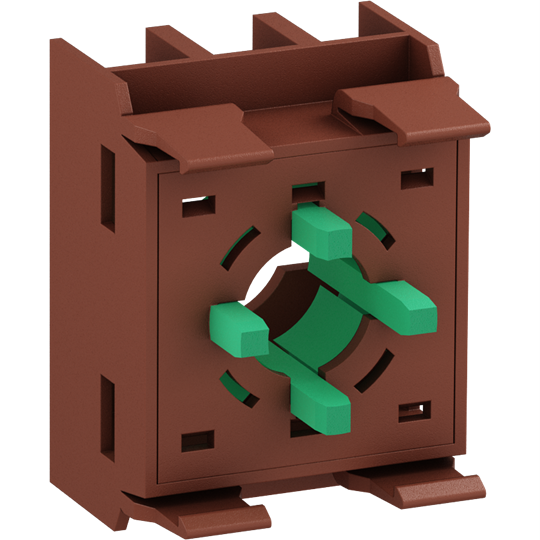

ABB P9ACDPP Maintained Accessory Brown For: Standard Pushbuttons/Switches

Product Code: P9ACDPP

  • Compatible with 50/60 Hz systems
  • Operates in -25 to 50°C range
  • M3.5 screw terminal for secure connection
  • IP20 and IP65 protection rating
  • Fits 22 mm mounting holes
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 27.7W x 39.5H x 29.7D
Operational Temperature Range (°C) -30 to 70
Suitable For P9MP Pilot Devices
Weight (kg) 0.012
Storage Temperature Range (°C) -40 to 70
Product Type Maintained Accessory
Brand ABB
Series HW
Colour Brown
Degree of Pollution IP3
Degree of Protection IP20, IP65
Insulation Resistance 100 MOhm
Lamp Colour Amber
Mounting Hole Diameter 22 mm
Operational Temperature -25 to 50 deg C
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 2.5 kV
Standards and Approvals IEC/EN 60947-1, IEC/EN 60947-5-1, UL 508
Terminal Type M3.5 Screw

Description

This Maintained Accessory Device is designed for standard pushbuttons and illuminated pushbuttons. It is specifically compatible with contact blocks P9B01VN, P9B01VR, P9B10VA, and P9B01FN. This device is intended for use with modular metal applications.
