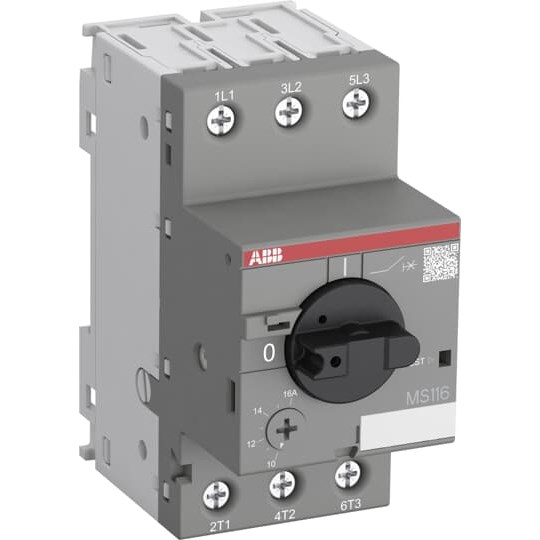

This Manual Motor Starter is a reliable and robust solution for industrial and commercial applications, designed to meet the rigorous demands of your electrical systems. With a rated voltage of 690 V and a rated current of 0.25 A, it ensures efficient performance across various environments.
The starter features a rotary handle actuator type, providing intuitive operation while maintaining control over your circuits. Its screw terminal type supports secure connections with tightening torque ranging from 0.8-1.2 N-m, ensuring stability in installation.
Engineered for durability, this product boasts an IP20 degree of protection, safeguarding against solid objects larger than 12 mm. It operates effectively within temperatures from -25 to 70 degrees Celsius and can be stored between -50 to 80 degrees Celsius without compromising functionality.
With dimensions of 45 mm in width, 90 mm in height, and a depth of 85.6 mm, it fits seamlessly into various setups without occupying excessive space. The wire stripping length is set at 9 mm for optimal connection preparation.
The manual motor starter adheres to multiple standards and approvals including IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1 as well as UL certifications such as UL 60947-1 and UL 60947-4-1. Additionally, it complies with IEC 60335-2-40 A2L standards for enhanced safety assurance.
For those concerned with power efficiency, the unit has a power loss of just 4.8 W while supporting a rated power output of up to 0.06 kW. Its thermomagnetic switching type provides reliable circuit interruption under fault conditions with an impressive breaking capacity of up to 100 kA.
Designed for flexible connectivity options, its main circuit connecting capacity accommodates both flexible wires with ferrule (1/2 x 0.75–2.5 sq-mm) and rigid wires (1/2 x 1–4 sq-mm), making it adaptable to different wiring requirements.
Furthermore, the current setting range spans from 0.16–0.25 A allowing precise adjustments based on specific application needs while featuring an overload release current setting fixed at 0.16 A for added protection against overcurrent scenarios.
Overall this manual motor starter offers comprehensive features tailored towards enhancing operational reliability within demanding environments all backed by stringent industry certifications ensuring peace-of-mind during usage across diverse installations worldwide.
