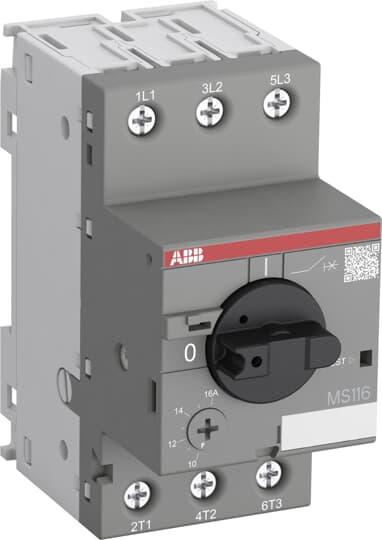

ABB MS116-16 MANUAL MOTOR STARTER 10 ... 16 A MS116-16
Zoom
ABB MS116-16 MANUAL MOTOR STARTER 10 ... 16 A MS116-16
Product Code: MS116-16
The MS116-16 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 16.0 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 16 kA at 400 VAC and trip class 10A. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory.
Technical Specifications
Brand
ABB
Breaking Capacity 400V AC - Icu (kA)
16
Degree of Protection
IP20
Design of Control Element
Turn Button
Dimensions (mm)
45W x 90H x 85.6D
Main Circuit Electrical Connection
Screw Connection
No. of Poles
3
Overload Release Current Setting (A)
10
Phase Failure Sensitive
Yes
Power Loss (W)
8.4
Rated Instantaneous Short-Circuit Current - Ii (A)
240
Rated Insulation Voltage (V)
690
Rated Operational Current (A)
10
Rated Operational Power AC-3 400V (kW)
7.5
Rated Operational Voltage (V)
690
Rated Uninterrupted Current - Iu (A)
16
Switching Type
Thermomagnetic
Terminal Type
Screw Terminals
Thermal Current Setting Range (A)
10.0 - 16.0
Thermal Overload Protection
Yes
Documents
Datasheet
Product catalogue (Flipbook)
