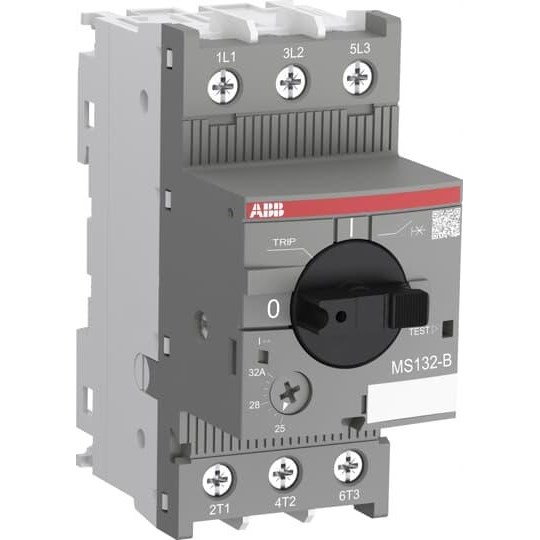

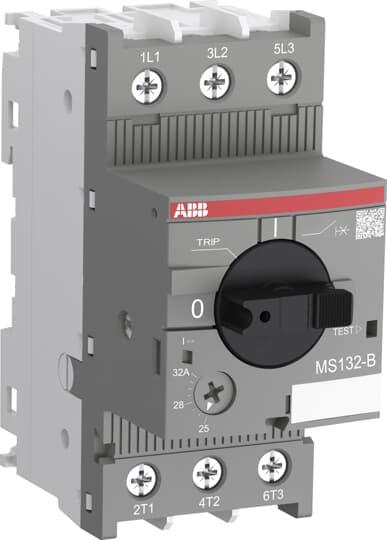

ABB MS132-16B MANUAL MOTOR STARTER 10 ... 16 A MS132-16B
Zoom
ABB MS132-16B MANUAL MOTOR STARTER 10 ... 16 A MS132-16B
Product Code: MS132-16B
MS132-B is a compact and powerful range for motor protection up to 15 kW (400 V) / 32 A in width of 45 mm, complying with the latest railway rolling stock standards and allowing installation in passengers or driver cabins for trains frequently operating tunnels or undergrounds. They offer a reliable protection for motors in the event of overload or phase failure. The devices have trip class 10. This type has also a clear and reliable indication of fault in a separate window in the event of short-circuit tripping. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, power in-feed blocks are available as accessory. These are suitable throughout the MS132-B/MS165-B range. €“ designed in accordance to the applicable parts of IEC 60077 standard €“ shocks and vibration withstand conforming to IEC 61373 (category 1, class B) €“ usable according to European fire and smoke safety standard EN 45545-2
Technical Specifications
Brand
ABB
Breaking Capacity 400V AC - Icu (kA)
100
Degree of Protection
IP20
Design of Control Element
Turn Button
Dimensions (mm)
45W x 97.8H x 86.55D
Main Circuit Electrical Connection
Screw Connection
No. of Poles
3
Overload Release Current Setting (A)
10
Phase Failure Sensitive
Yes
Power Loss (W)
8.4
Rated Instantaneous Short-Circuit Current - Ii (A)
240
Rated Insulation Voltage (V)
690
Rated Operational Current (A)
16
Rated Operational Power AC-3 400V (kW)
7.5
Rated Operational Voltage (V)
250
Rated Uninterrupted Current - Iu (A)
16
Series
MS132-B
Switching Type
Thermomagnetic
Terminal Type
Screw Terminals
Thermal Current Setting Range (A)
10 - 16
Thermal Overload Protection
Yes
